Temperature indicator OMB 452UNI

voltageheightLCD

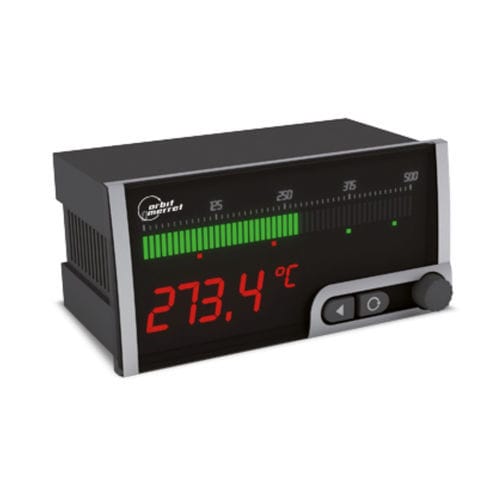

The OMB 452 model series are panel programmable three-color bargraphs with auxiliary display and adjustable LCD scale. The OMB 452UNI type is a multifunction instrument with the possibility of configuration for 8 various input options, easily configurable in the instrument menu. The instrument is based on a single-chip microcontroller with a multichannel 24-bit sigma-delta converter, which secures high accuracy, stability and easy operation of the instrument. horizontal bargraph - 50 LED with display and LCD scale multifunction input (DC, PM, RTD, T/C, DU) digital filters, tare, linearization size of DIN 160 x 80 mm power supply 10…30 V AC/DC or 80…250 V AC/DC Options comparators data output analog output measured value record
