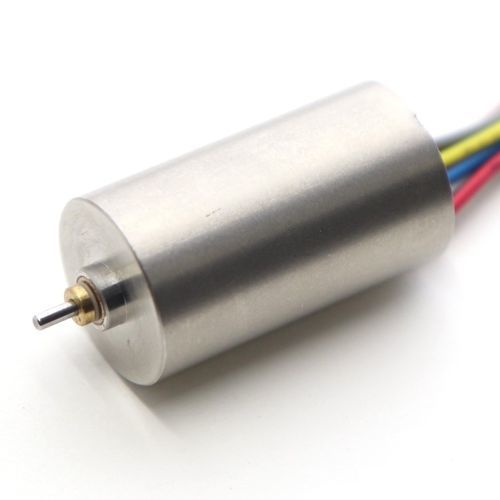

Brushless electromotor BMS12-21DC12 V7.4 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 7.4 V
- Configuration
- miniature
- Power
6.9 W, 7.7 W
(0.01 hp, 0.01 hp)- Intensity
418 mA, 706 mA
- Torque
0.0016 Nm, 0.0018 Nm
(0.00118 ft.lb, 0.001328 ft.lb)- Rotational speed
22,800 rpm, 24,300 rpm
(143,256.625 rad.min-1, 152,681.403 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
BMS12-21 is a Brushless Motor with a diameter of 12 mm and length of 21 mm.
With hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):1.83/1.60
No load speed(rpm):22800/24300
No load current(mA):100/70
Stall torque(mNm):11.60/12.09
Stall current(mA):3940/2700
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
