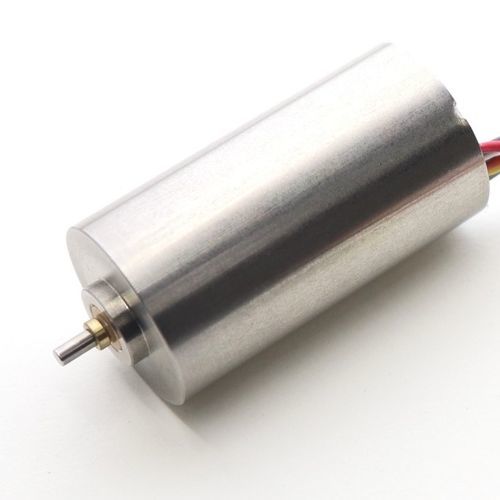

Brushless electromotor BMS16-20DC12 V24 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V, 24 V, 7.4 V
- Configuration
- coreless, compact, miniature
- Power
9.4 W, 9.7 W, 10.6 W
(0.01 hp, 0.01 hp, 0.01 hp)- Intensity
334 mA, 620 mA, 1,305 mA
- Torque
0.0024 Nm, 0.0025 Nm, 0.0032 Nm
(0.00177 ft.lb, 0.001844 ft.lb, 0.00236 ft.lb)- Rotational speed
23,200 rpm, 23,800 rpm, 24,800 rpm
(145,769.8991 rad.min-1, 149,539.8103 rad.min-1, 155,822.9956 rad.min-1)- Diameter
16 mm
(0.63 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
BMS16-20 is a Brushless Motor with a diameter of 16 mm and length of 20 mm.
With hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):3.20/2.42/2.45
No load speed(rpm):23800/23200/24800
No load current(mA):188/113/60
Stall torque(mNm):15.06/15.97/16.30
Stall torque(mA):5450/3460/1880
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
