Brushless electromotor BMS16-30DC12 Vcoreless
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 12 V
- Configuration
- coreless, compact, miniature
- Power
9.5 W, 14 W, 15.4 W
(0.01 hp, 0.02 hp, 0.02 hp)- Intensity
311 mA, 660 mA, 807 mA
- Torque
0.0033 Nm, 0.0039 Nm
(0.002434 ft.lb, 0.002876 ft.lb)- Rotational speed
14,500 rpm, 15,800 rpm, 16,600 rpm
(91,106.187 rad.min-1, 99,274.3279 rad.min-1, 104,300.8761 rad.min-1)- Diameter
16 mm
(0.63 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

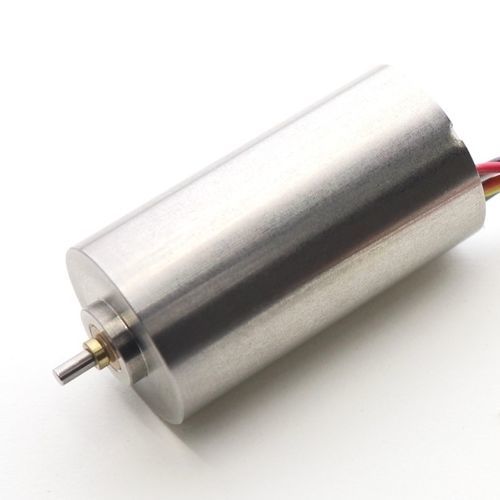

BMS16-30 is a Brushless Motor with a diameter of 16 mm and length of 30 mm.
With Hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):3.26/3.90/3.86
No load speed(rpm):14500/16600/15800
No load current(mA):123/86/41
Stall torque(mNm):25.10/35.33/33.84
Stall current(mA):5390/5290
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
