Brushless electromotor BMS22-21DC24 Vcoreless
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- coreless, compact, miniature
- Power
10.2 W
(0.01 hp)- Intensity
381 mA
- Rotational speed
9,955 rpm
(62,549.1097 rad.min-1)- Diameter
22 mm
(0.87 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

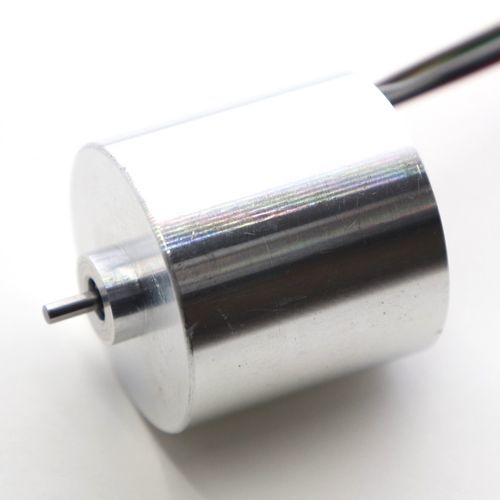

BMS22-2113 is a Brushless Motor with a diameter of 22 mm and length of 21 mm.
With hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):5.5
No load speed(rpm):12000
No load current(mA):80
Stall torque(mNm):32.3
Stall current(mA):1850
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
Catalogs
BMS22-2113
1 Pages
