Brushless electromotor BMS17-1821DC24 Vcoreless
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 24 V
- Configuration
- coreless, compact, miniature
- Power
6.2 W
(0.01 hp)- Intensity
291 mA
- Torque
0.0024 Nm
(0.00177 ft.lb)- Rotational speed
20,000 rpm
(125,663.7061 rad.min-1)- Diameter
17 mm
(0.67 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

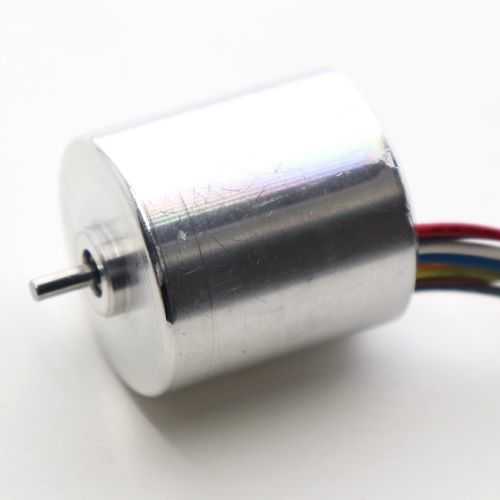

BMS17-1821 is a Brushless Motor with a diameter of 17 mm and length of 18 mm.
With hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):2.36
No load speed(rpm):20000
No load current(mA):72
Stall torque(mNm):11.8
Stall current(mA):1170
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
Catalogs
BMS17-1821
1 Pages
