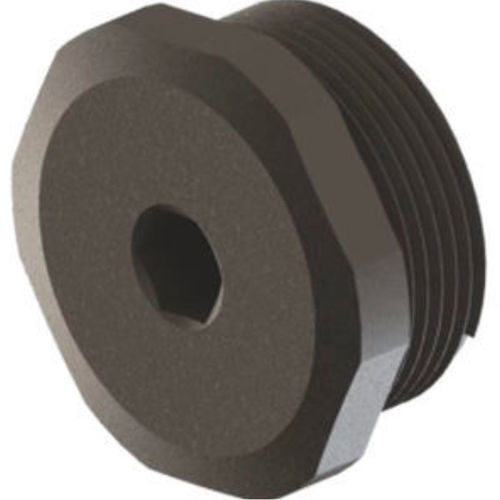

Protection blind cover MOGKH 03

for electrical installation

Product
Polyamide Hexagonal Blind Stops

Material and Components
Screw plug: Polyamide PA6 V2 +30% GF
Sealing ring: NBR
Connection thread: Metric (EN 60423)
Protection class: IP68
Properties: For unused threaded holes
UV resistance (on request)
Halogen free

Technical Data (Metric thread blind stops)
AG Thread | Gray Code (RAL 7001) | L. Gray Code (RAL 7035) | Black Code (RAL 9005) | H (mm) | SW (mm) | SW2 (mm) | GL (mm)
M 20 x 1,5 | MOGKH 03 | MOLKH 03 | MOBKH 03 | 14,5 | 24 | 8 | 9
M 32 x 1,5 | MOGKH 05 | MOLKH 05 | MOBKH 05 | 17,5 | 36 | 8 | 11,5

Technical characteristics / specifications

• Screw plug material: Polyamide PA6 V2 with 30% glass fiber (GF)
• Sealing ring material: NBR
• Connection thread: Metric (EN 60423)
• Protection class: IP68
• Intended use: For unused threaded holes
• UV resistance: Available on request
• Halogen free
• Available threads/models: M 20 x 1.5 (codes MOGKH 03 / MOLKH 03 / MOBKH 03), M 32 x 1.5 (codes MOGKH 05 / MOLKH 05 / MOBKH 05)
• Dimensional data provided in technical table: H, SW, SW2, GL
