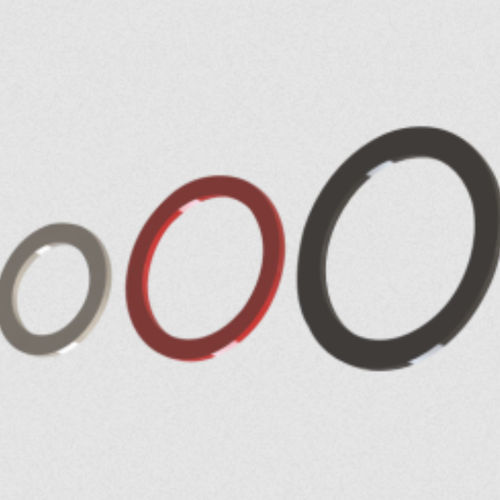

Flat washer RN-TPV-M series

TPVM12

Product name
Flat washer RN-TPV series (metric).

Material and Operating Conditions
Material: TPV
Temperature range: -20 °C to +100 °C

Available sizes (table)
Code — Metric size | Inner diameter | Outer diameter | Thickness (all dimensions in mm):

• RN-TPV-M12 — 12 | 12 | 17 | 1.4
• RN-TPV-M16 — 16 | 16 | 23 | 1.5
• RN-TPV-M20 — 20 | 20 | 23 | 1.5
• RN-TPV-M20-2 — 20-2 | 19.5 | 26 | 1.5
• RN-TPV-M25 — 25 | 25 | 32 | 1.5
• RN-TPV-M32 — 32 | 32 | 42 | 1.5
• RN-TPV-M40 — 40 | 40 | 50 | 2.0
• RN-TPV-M50 — 50 | 50 | 59 | 2.0
• RN-TPV-M63 — 63 | 63 | 74 | 2.0
• RN-TPV-M75 — 75 | 75 | 89 | 2.0

Documents
Technical datasheet available (see product documentation).

Technical specifications

• Material: TPV
• Temperature range: -20 °C to +100 °C
• Metric sizes and dimensions: codes RN-TPV-M12 to RN-TPV-M75 (see list above)
• Dimensions provided per code: inner diameter, outer diameter, thickness (mm)
