Flat washer RN-TPV-G series

sealingTPV

Product

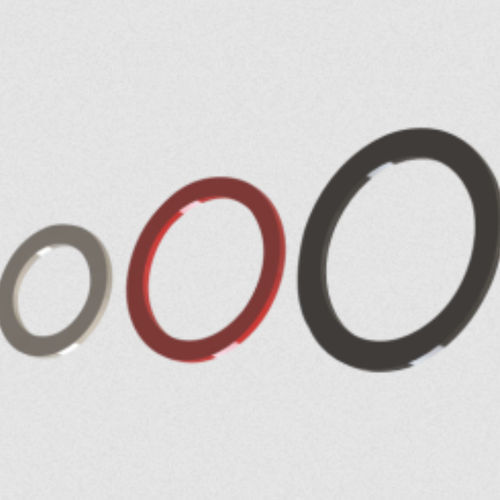

Flat washer RN-TPV series for gas fittings (material: TPV).

Details
Material: TPV
Temperature range: -20 °C to +100 °C

Technical data
Code | Size | Inner diameter | Outer diameter | Thickness
RN-TPV-G38 | G3/8" | 16.5 mm | 23 mm | 1.5 mm
RN-TPV-G12 | G1/2" | 21 mm | 26 mm | 1.5 mm
RN-TPV-G34 | G3/4" | 26.5 mm | 33 mm | 1.5 mm
RN-TPV-G100 | G1" | 33 mm | 42 mm | 1.5 mm
RN-TPV-G114 | G11/4" | 42 mm | 50 mm | 2 mm
RN-TPV-G112 | G11/2" | 48 mm | 58 mm | 2 mm
RN-TPV-G200 | G2" | 59.5 mm | 69 mm | 2 mm
RN-TPV-G212 | G21/2" | 75 mm | 80 mm | 2 mm
RN-TPV-G300 | G3" | 88 mm | 99 mm | 2 mm

Characteristics / Technical specifications

• Material: TPV
• Temperature range: -20 °C to +100 °C
• Available codes and dimensions:
  • RN-TPV-G38 — Size G3/8" — Inner diameter 16.5 mm — Outer diameter 23 mm — Thickness 1.5 mm
  • RN-TPV-G12 — Size G1/2" — Inner diameter 21 mm — Outer diameter 26 mm — Thickness 1.5 mm
  • RN-TPV-G34 — Size G3/4" — Inner diameter 26.5 mm — Outer diameter 33 mm — Thickness 1.5 mm
  • RN-TPV-G100 — Size G1" — Inner diameter 33 mm — Outer diameter 42 mm — Thickness 1.5 mm
  • RN-TPV-G114 — Size G11/4" — Inner diameter 42 mm — Outer diameter 50 mm — Thickness 2 mm
  • RN-TPV-G112 — Size G11/2" — Inner diameter 48 mm — Outer diameter 58 mm — Thickness 2 mm
  • RN-TPV-G200 — Size G2" — Inner diameter 59.5 mm — Outer diameter 69 mm — Thickness 2 mm
  • RN-TPV-G212 — Size G21/2" — Inner diameter 75 mm — Outer diameter 80 mm — Thickness 2 mm
  • RN-TPV-G300 — Size G3" — Inner diameter 88 mm — Outer diameter 99 mm — Thickness 2 mm
