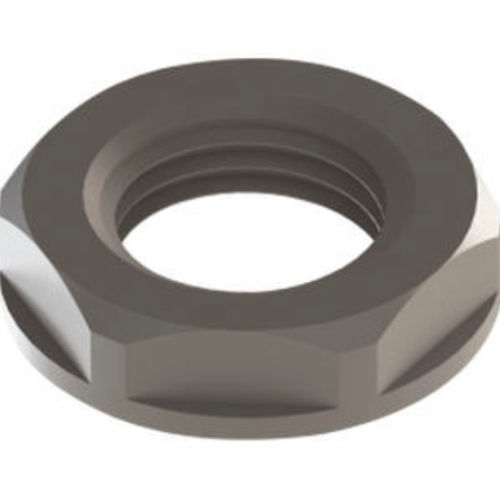

Flange locknut RMSG 01

hexagonalglass-fiber reinforced polyamidePA6

Product description

• Hexagonal lock nut with collar (flange) for cable glands and electrical enclosures
• Material: Polyamide PA6 V2 reinforced with 30% glass fiber (GF)
• Applicable threads: Metric (EN 60423) and PG (DIN 40430)
• Operating temperature: -20 °C to +100 °C (continuous); short-term up to +150 °C
• Halogen free; UV resistance available on request

Technical data (metric / PG thread)
Thread - Gray Code (RAL 7001) - Light Gray Code (RAL 7035) - Black Code (RAL 9005) - H (mm) - Wrench (mm)
M 12 x 1,5 - RMSG 01 - RMSL 01 - RMSB 01 - 5 - 18
M 16 x 1,5 - RMSG 02 - RMSL 02 - RMSB 02 - 5 - 22
M 20 x 1,5 - RMSG 03 - RMSL 03 - RMSB 03 - 6 - 26
M 20 x 1,5 - RMSG 03GM - RMSL 03GM - RMSB 03GM - 8,25 - 26
M 25 x 1,5 - RMSG 04 - RMSL 04 - RMSB 04 - 6 - 32
M 32 x 1,5 - RMSG 05 - RMSL 05 - RMSB 05 - 7 - 41
M 40 x 1,5 - RMSG 06 - RMSL 06 - RMSB 06 - 7 - 50
M 50 x 1,5 - RMSG 07 - RMSL 07 - RMSB 07 - 8 - 60
M 63 x 1,5 - RMSG 08 - RMSL 08 - RMSB 08 - 8 - 75

PG 7 - ROSG 01 - ROSL 01 - ROSB 01 - 5 - 19
PG 9 - ROSG 02 - ROSL 02 - ROSB 02 - 5 - 22
PG 11 - ROSG 03 - ROSL 03 - ROSB 03 - 5 - 24
PG 13,5 - ROSG 04 - ROSL 04 - ROSB 04 - 6 - 27
PG 16 - ROSG 05 - ROSL 05 - ROSB 05 - 6 - 30
PG 21 - ROSG 06 - ROSL 06 - ROSB 06 - 7 - 36
PG 29 - ROSG 07 - ROSL 07 - ROSB 07 - 7 - 46
PG 36 - ROSG 08 - ROSL 08 - ROSB 08 - 8 - 60
PG 42 - ROSG 09 - ROSL 09 - ROSB 09 - 8 - 65
PG 48 - ROSG 10 - ROSL 10 - ROSB 10 - 8 - 70

Key specifications

• Available colors: Gray (RAL 7001), Light Gray (RAL 7035), Black (RAL 9005)
• Flanged design for improved load distribution and sealing on panels
• Glass-fiber reinforcement for increased dimensional stability
• Designed for use with cable glands and electrical housings

Ordering and notes

• Select the code corresponding to thread size and color from the technical data
• UV-stabilized variants available on request; contact sales for lead times
• Conforms to EN 60423 / DIN 40430 thread standards
