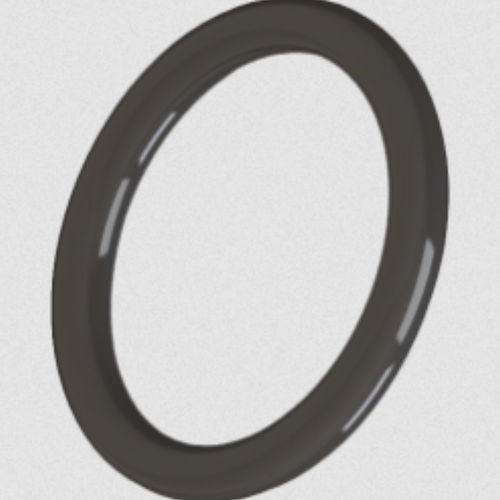

NBR sealing ring 80015

NBR sealing ring - 80015 - ORTAC
NBR sealing ring - 80015 - ORTAC
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
NBR

Description

Product overview
  • Material: Nitrile rubber (70 Shore A)
  • Temperature range: -30 °C to +100 °C


Technical data
  • Inner diameter 8 mm | Thickness 1.5 mm | Gland size M10 | Code 80015
  • Inner diameter 9 mm | Thickness 1.5 mm | Gland size PG 7 / M12 | Code 90015
  • Inner diameter 11 mm | Thickness 1.5 mm | Gland size PG 9 / M16 | Code 11015
  • Inner diameter 13 mm | Thickness 1.5 mm | Gland size PG 11 | Code 13015
  • Inner diameter 16 mm | Thickness 1.5 mm | Gland size PG 13.5 / M20 | Code 16015
  • Inner diameter 18 mm | Thickness 1.5 mm | Gland size PG 16 | Code 18015
  • Inner diameter 19 mm | Thickness 2 mm | Gland size M25 | Code 19020
  • Inner diameter 22 mm | Thickness 2 mm | Gland size PG 21 | Code 22020
  • Inner diameter 26 mm | Thickness 2 mm | Gland size M32 | Code 26020
  • Inner diameter 30 mm | Thickness 2 mm | Gland size PG 29 | Code 30020
  • Inner diameter 34 mm | Thickness 2 mm | Gland size M40 | Code 34020
  • Inner diameter 40 mm | Thickness 2 mm | Gland size PG 36 | Code 40020
  • Inner diameter 42 mm | Thickness 2 mm | Gland size M50 | Code 42020
  • Inner diameter 48 mm | Thickness 2 mm | Gland size PG 42 | Code 48020
  • Inner diameter 53 mm | Thickness 2 mm | Gland size PG 48 | Code 53020
  • Inner diameter 56 mm | Thickness 2 mm | Gland size M63 | Code 56020


Features / Technical specifications
  • Available inner diameters (mm): 8, 9, 11, 13, 16, 18, 19, 22, 26, 30, 34, 40, 42, 48, 53, 56
  • Thickness: 1.5 mm for sizes 8-18 mm; 2 mm for sizes 19-56 mm
  • Gland size and product code mapping listed above

Catalogs

Go to the ORTAC website for more information
