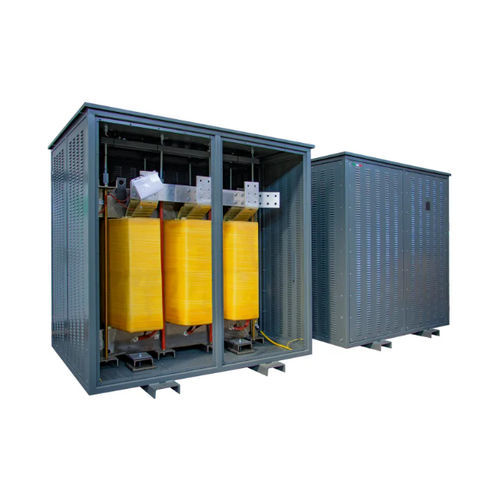

Isolation transformer DYN11 K13 AL IP21dryfor indoor serviceIEC
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- dry
- Applications
- for indoor service
- Norms
- IEC
- Other characteristics
- K-factor
- Output power kVA
Max.: 1,600 kVA
(2,175.393848 hp)Min.: 30 kVA
(40.788635 hp)- Primary voltage
400 V
- Secondary voltage
400 V
- Frequency
50 Hz
Description
Short description
The DYN11 K13 AL IP21 from Ortea Next is a low-voltage isolation transformer designed for industrial installations with harmonic-rich loads. It provides galvanic separation between primary and secondary circuits and includes an electrostatic shield bonded to earth to reduce interference and improve safety.
Product type
LOW-VOLTAGE ISOLATION TRANSFORMERS
Variants
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available
Technical specifications (excerpt)
The DYN11 K13 AL IP21 from Ortea Next is a low-voltage isolation transformer designed for industrial installations with harmonic-rich loads. It provides galvanic separation between primary and secondary circuits and includes an electrostatic shield bonded to earth to reduce interference and improve safety.
Product type
LOW-VOLTAGE ISOLATION TRANSFORMERS
Variants
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5 | Data Sheet: available
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available
Technical specifications (excerpt)
- Frequency: 50 Hz
- K Factor: 13
- Input / Output voltage: 400 / 400 V
- Primary winding connection: Delta
- Secondary winding connection: Star + N
- Vector group: Dyn11
- Core material: M270 magnetic steel
- Winding material: Aluminium
- Electrostatic shield between primary & secondary, grounded
- Max ambient temperature: 40 °C
- Insulation class / Thermal class: H
- Insulation level: 3
- Temperature rise: 125
- Max altitude: 1000 m
- Environmental - climate - fire class: E1 - C1 - F0
- Installation: Indoor
- Protection degree: IP21
- Reference standards: EN 60076 / IEC 61558 (when applicable)
