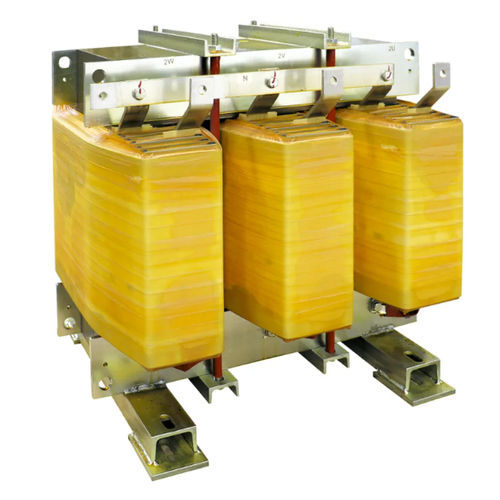

Isolation transformer DZN0 K13 AL IP00

dryfor indoor serviceIEC

Overview
Low-voltage isolation transformer designed for industrial installations. Model DZN0 K13 AL IP00 features Delta primary and zig-zag secondary windings (vector group Dzn0), aluminium windings and an electrostatic shield between primary and secondary grounded for safety. Intended for indoor installation (IP00).

Technical specifications (summary)
Frequency: 50 Hz
K Factor: 13
Input voltage: 400 V
Output voltage: 400 V
Primary winding connection: Delta
Secondary winding connection: Zig-zag
Vector group: Dzn0
Core material: M270 magnetic steel
Winding material: Aluminium
Electrostatic shield: Between primary & secondary, connected to ground
Max ambient temperature: 40 °C
Insulation class: H
Insulation level: 3
Thermal class: H
Temperature rise: 125 °C
Max altitude: 1000 m
Environmental - climate - fire class: E1 - C1 - F0
Installation: Indoor
Protection degree: IP00
Reference Standards: EN 60076 / IEC 61558 (when applicable)

Variants table (Part number | Power kVA | In-rush current A | No-load losses W | Load losses W | Vcc %)
DZN0 K13 AL IP00 30 | 30 | 26 | 375 | 900 | 4
DZN0 K13 AL IP00 40 | 40 | 16 | 440 | 1070 | 4
DZN0 K13 AL IP00 50 | 50 | 16 | 480 | 1160 | 4
DZN0 K13 AL IP00 63 | 63 | 16 | 670 | 1230 | 4
DZN0 K13 AL IP00 70 | 70 | 16 | 730 | 1290 | 4
DZN0 K13 AL IP00 80 | 80 | 16 | 790 | 1410 | 4
DZN0 K13 AL IP00 90 | 90 | 13 | 830 | 1480 | 4
DZN0 K13 AL IP00 100 | 100 | 13 | 930 | 1630 | 4
DZN0 K13 AL IP00 110 | 110 | 13 | 980 | 1750 | 4
DZN0 K13 AL IP00 125 | 125 | 13 | 1030 | 2000 | 4
DZN0 K13 AL IP00 140 | 140 | 12 | 1180 | 2110 | 4
DZN0 K13 AL IP00 160 | 160 | 12 | 1280 | 2260 | 4
DZN0 K13 AL IP00 180 | 180 | 12 | 1380 | 2440 | 4
DZN0 K13 AL IP00 200 | 200 | 11 | 1530 | 2580 | 4
DZN0 K13 AL IP00 225 | 225 | 11 | 1570 | 2790 | 4
DZN0 K13 AL IP00 250 | 250 | 11 | 1730 | 3040 | 4
DZN0 K13 AL IP00 280 | 280 | 11 | 1850 | 3390 | 4
DZN0 K13 AL IP00 315 | 315 | 10 | 2020 | 3840 | 4
DZN0 K13 AL IP00 350 | 350 | 10 | 2240 | 4350 | 4
DZN0 K13 AL IP00 400 | 400 | 9 | 2400 | 4830 | 4
DZN0 K13 AL IP00 500 | 500 | 8 | 2970 | 5600 | 4
DZN0 K13 AL IP00 630 | 630 | 7 | 3200 | 6590 | 4
DZN0 K13 AL IP00 800 | 800 | 7 | 4320 | 7660 | 4.5
DZN0 K13 AL IP00 1000 | 1000 | 7 | 5280 | 9000 | 4.5
DZN0 K13 AL IP00 1250 | 1250 | 6 | 6600 | 11100 | 5
DZN0 K13 AL IP00 1600 | 1600 | 5 | 8100 | 13100 | 5

Technical characteristics / specifications

• Frequency: 50 Hz
• K Factor: 13
• Input voltage: 400 V
• Output voltage: 400 V
• Primary connection: Delta
• Secondary connection: Zig-zag
• Vector group: Dzn0
• Core material: M270 magnetic steel
• Winding material: Aluminium
• Electrostatic shield: between primary and secondary, connected to ground
• Max ambient temperature: 40 °C
• Insulation class: H
• Insulation level: 3
• Thermal class: H
• Temperature rise: 125 °C
• Max altitude: 1000 m
• Environmental - climate - fire class: E1 - C1 - F0
• Installation: Indoor
• Protection degree: IP00
• Reference standards: EN 60076 / IEC 61558 (when applicable)
