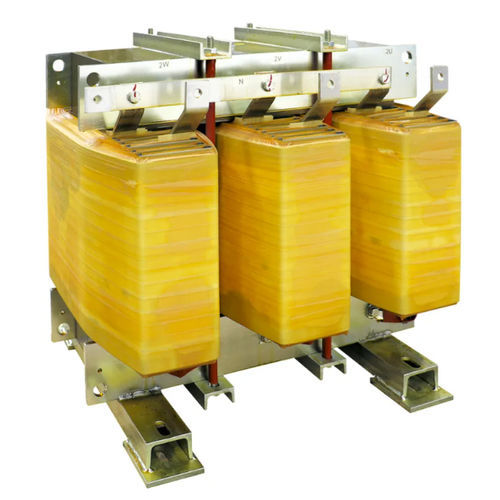

Isolation transformer DZN0 K4 AL IP00

dryfor indoor serviceIEC

Product
Ortea Next DZN0 K4 AL IP00 - low-voltage isolation transformer for electrical safety, reduction of disturbances and equipment protection in industrial installations.

Main technical attributes

• Frequency: 50 Hz
• K Factor: 4
• Input voltage: 400 V
• Output voltage: 400 V
• Primary winding connection: Delta
• Secondary winding connection: Zig-zag
• Vector unit: Dzn0
• Core material: M270 magnetic steel
• Winding material: Aluminium
• Electrostatic shield: Between primary & secondary, connected to ground
• Max ambient temperature: 40 °C
• Insulation class: H
• Insulation level: 3
• Thermal class: H
• Temperature rise: 125 °C
• Max altitude: 1000 m
• Environmental - climate - fire class: E1 - C1 - F0
• Installation: Indoor
• Protection degree: IP00
• Reference Standards: EN 60076 / IEC 61558 (when applicable)

Available variants (Part number | Power [kVA] | In-rush current | No-load losses [W] | Load losses [W] | Vcc %)
Part number | Power | In-rush current | No-load losses | Load losses | Vcc %
DZN0 K4 AL IP00 40 | 40 | 19 | 375 | 1340 | 4
DZN0 K4 AL IP00 50 | 50 | 13 | 440 | 1580 | 4
DZN0 K4 AL IP00 63 | 63 | 13 | 480 | 1660 | 4
DZN0 K4 AL IP00 80 | 80 | 13 | 670 | 1820 | 4
DZN0 K4 AL IP00 90 | 90 | 13 | 730 | 1920 | 4
DZN0 K4 AL IP00 100 | 100 | 13 | 790 | 2030 | 4
DZN0 K4 AL IP00 110 | 110 | 11 | 830 | 2140 | 4
DZN0 K4 AL IP00 125 | 125 | 11 | 930 | 2400 | 4
DZN0 K4 AL IP00 140 | 140 | 11 | 980 | 2610 | 4
DZN0 K4 AL IP00 160 | 160 | 11 | 1030 | 2990 | 4
DZN0 K4 AL IP00 180 | 180 | 10 | 1180 | 3150 | 4
DZN0 K4 AL IP00 200 | 200 | 10 | 1280 | 3360 | 4
DZN0 K4 AL IP00 225 | 225 | 10 | 1380 | 3580 | 4
DZN0 K4 AL IP00 250 | 250 | 9 | 1530 | 3840 | 4
DZN0 K4 AL IP00 280 | 280 | 9 | 1570 | 4160 | 4
DZN0 K4 AL IP00 315 | 315 | 9 | 1730 | 4540 | 4
DZN0 K4 AL IP00 350 | 350 | 9 | 1850 | 4910 | 4
DZN0 K4 AL IP00 400 | 400 | 8 | 2020 | 5810 | 4
DZN0 K4 AL IP00 450 | 450 | 8 | 2240 | 6500 | 4
DZN0 K4 AL IP00 500 | 500 | 8 | 2400 | 7200 | 4
DZN0 K4 AL IP00 630 | 630 | 6 | 2970 | 8370 | 4
DZN0 K4 AL IP00 800 | 800 | 5 | 3200 | 9800 | 4
DZN0 K4 AL IP00 1000 | 1000 | 5 | 4320 | 11400 | 4.5
DZN0 K4 AL IP00 1250 | 1250 | 5 | 5280 | 13540 | 4.5
DZN0 K4 AL IP00 1600 | 1600 | 4 | 6600 | 16400 | 5
DZN0 K4 AL IP00 2000 | 2000 | 4 | 8100 | 19300 | 5

Technical specifications

• Frequency: 50 Hz
• K Factor: 4
• Input / Output: 400 V / 400 V
• Primary connection: Delta
• Secondary connection: Zig-zag
• Vector unit: Dzn0
• Core: M270 magnetic steel
• Windings: Aluminium
• Electrostatic shield: between primary and secondary, grounded
• Max ambient temperature: 40 °C
• Insulation & thermal class: H
• Insulation level: 3
• Temperature rise: 125 °C
• Max altitude: 1000 m
• Environmental / climate / fire class: E1 - C1 - F0
• Installation: indoor
• Protection degree: IP00
• Standards: EN 60076 / IEC 61558 (when applicable)
