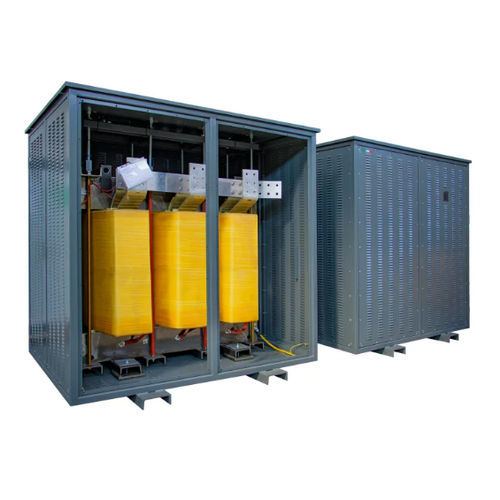

Isolation transformer DZN0 K20 AL IP21
dryfor indoor serviceIEC

Isolation transformer - DZN0 K20 AL IP21 - Ortea Next - dry / for indoor service / IEC
Isolation transformer - DZN0 K20 AL IP21 - Ortea Next - dry / for indoor service / IEC
Add to favorites
Compare this product
Go to the Ortea Next website for more information

Characteristics

Type
isolation
Configuration
dry
Applications
for indoor service
Norms
IEC
Other characteristics
K-factor
Output power kVA

Min.: 28 kVA
(38.069392 hp)

Max.: 1,400 kVA
(1,903.469617 hp)

Primary voltage

400 V

Secondary voltage

400 V

Frequency

50 Hz

Description

Product overview
Low-voltage isolation transformer for electrical distribution and equipment protection. DZN0 K20 AL IP21 is a delta-to-zig-zag vector group isolation transformer with aluminium winding and M270 core, designed for indoor installation to isolate sensitive loads, mitigate harmonic effects (K factor applications) and improve power quality.

Variants (part number table)
DZN0 K20 AL IP21 28 | 28 | 28 | 375 | 730 | 4
DZN0 K20 AL IP21 36 | 36 | 18 | 440 | 860 | 4
DZN0 K20 AL IP21 45 | 45 | 18 | 480 | 900 | 4
DZN0 K20 AL IP21 58 | 58 | 18 | 670 | 990 | 4
DZN0 K20 AL IP21 63 | 63 | 18 | 730 | 1050 | 4
DZN0 K20 AL IP21 70 | 70 | 18 | 790 | 1160 | 4
DZN0 K20 AL IP21 80 | 80 | 15 | 830 | 1180 | 4
DZN0 K20 AL IP21 90 | 90 | 15 | 930 | 1320 | 4
DZN0 K20 AL IP21 100 | 100 | 15 | 980 | 1440 | 4
DZN0 K20 AL IP21 110 | 110 | 16 | 1030 | 1660 | 4
DZN0 K20 AL IP21 125 | 125 | 14 | 1180 | 1730 | 4
DZN0 K20 AL IP21 140 | 140 | 14 | 1280 | 1830 | 4
DZN0 K20 AL IP21 160 | 160 | 14 | 1380 | 1950 | 4
DZN0 K20 AL IP21 180 | 180 | 12 | 1530 | 2090 | 4
DZN0 K20 AL IP21 200 | 200 | 12 | 1570 | 2290 | 4
DZN0 K20 AL IP21 225 | 225 | 12 | 1730 | 2480 | 4
DZN0 K20 AL IP21 250 | 250 | 12 | 1850 | 2680 | 4
DZN0 K20 AL IP21 280 | 280 | 11 | 2020 | 3250 | 4
DZN0 K20 AL IP21 315 | 315 | 11 | 2240 | 3580 | 4
DZN0 K20 AL IP21 350 | 350 | 11 | 2400 | 3970 | 4
DZN0 K20 AL IP21 450 | 450 | 9 | 2970 | 4640 | 4
DZN0 K20 AL IP21 580 | 580 | 7 | 3200 | 5440 | 4
DZN0 K20 AL IP21 720 | 720 | 7 | 4320 | 6240 | 4.5
DZN0 K20 AL IP21 900 | 900 | 7 | 5280 | 7450 | 4.5
DZN0 K20 AL IP21 1100 | 1100 | 6 | 6600 | 8900 | 5
DZN0 K20 AL IP21 1400 | 1400 | 6 | 8100 | 10600 | 5

Technical specifications
  • Frequency: 50 Hz
  • K Factor: 20
  • Input voltage: 400 V
  • Output voltage: 400 V
  • Primary winding connection: Delta
  • Secondary winding connection: Zig-zag
  • Vector unit: Dzn0
  • Core material: M270 magnetic steel
  • Winding material: Aluminium
  • Electrostatic shield: Between primary & secondary, connected to ground
  • Max ambient temperature: 40 °C
  • Insulation class: H
  • Insulation level: 3
  • Thermal class: H
  • Temperature rise: 125 °C
  • Max altitude: 1000 m
  • Environmental - climate - fire class: E1 - C1 - F0
  • Installation: Indoor
  • Protection degree: IP21
  • Reference Standards: EN 60076 / IEC 61558 (when applicable)
