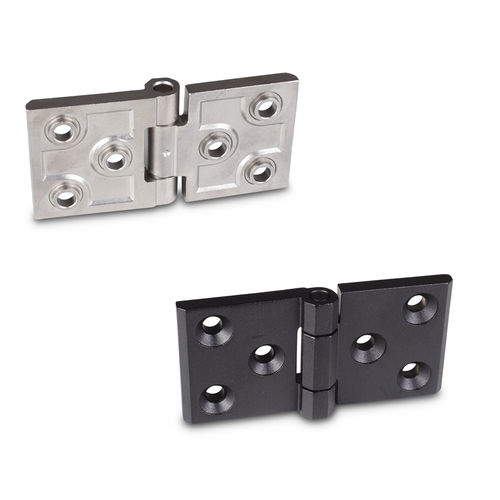

Stainless steel hinge GN 237.3
screw-in180°for heavy loads

stainless steel hinge
stainless steel hinge
stainless steel hinge
stainless steel hinge
stainless steel hinge
Add to favorites
Compare this product


Characteristics

Material
stainless steel
Installation
screw-in
Opening angle
180°
Applications
for heavy loads
Other characteristics
reinforced
Length

Max.: 160 mm
(6.299 in)

Min.: 63 mm
(2.48 in)

Width

Max.: 80 mm
(3.15 in)

Min.: 50 mm
(1.969 in)

Thickness

Max.: 21 mm
(0.827 in)

Min.: 12.5 mm
(0.492 in)

Description

Horizontally elongated Stainless Steel-Heavy duty hinges GN 237.3 are designed for use under tough conditions. Attachment points with a wider spacing and more installation holes allow a more effective introduction of force into the mounting surface. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks. The selected materials allow the hinges to be used in aggressive environments. Wear is minimized by the effective friction pairing of the hinge components and lubrication. The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.
