- Butt hinge
- Otto Ganter GmbH & Co. KG

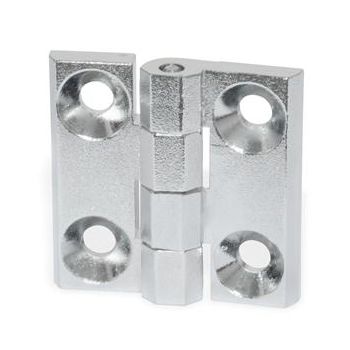

Butt hinge GN 237aluminiumdie-cast zincscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- butt
- Material
- aluminium, die-cast zinc
- Installation
- screw-in
- Opening angle
- 180°
- Length
Max.: 60 mm
(2.362 in)Min.: 30 mm
(1.181 in)- Width
Max.: 60 mm
(2.362 in)Min.: 30 mm
(1.181 in)- Thickness
Max.: 15 mm
(0.591 in)Min.: 7.5 mm
(0.295 in)
Description
Hinges GN 237 with horizontally elongated hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the attachment bore holes.
