Pull handle GN 3136

swingfoldingcarrying

Product description

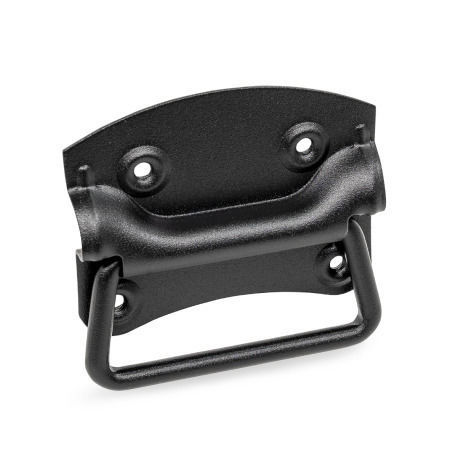

Folding handles GN 3136 are used to pull drawers and lift boxes and containers. When in use, the swivel handle contacts the sheet metal housing at approximately 90° and returns to its rest position by gravity.

Design notes
Due to the stamped and bent construction, stamped/bent parts can show larger tolerances; appropriate compensation measures should be considered in the assembly design.

Materials and finishes

• Steel
  • Zinc plated, blue passivated — abbreviation: ST
  • Powder coated — black, RAL 9005, textured finish — abbreviation: STSW
• Stainless steel — NI — AISI 304, plain finish

Article options / Variants

• Type A — with countersunk holes
• Example part numbers: GN 3136-85-70-A-ST, GN 3136-100-80-A-NI, GN 3136-135-110-A-STSW

Available dimensions (examples)

• Nominal length l1 (steel): 85, 100, 120, 135 mm
• Nominal length l1 (stainless): 100 mm
• Second length l2: 70, 80, 95, 110 mm
• Representative dimensions available: d1, d2, h1, h2, l3, m1, l4, l5, s (see technical table)

Technical information

• Weight (example article): 0.115 kg
• RoHS: compliant
• Customs tariff number: 83024900

Technical specifications

• Model: GN 3136
• Function: folding/swivel handle returning by gravity; for drawers, boxes and containers
• Materials/finishes: ST (zinc plated, blue passivated), STSW (powder coated black RAL 9005, textured), NI (AISI 304 stainless steel)
• Available types: A (with countersunk holes)
