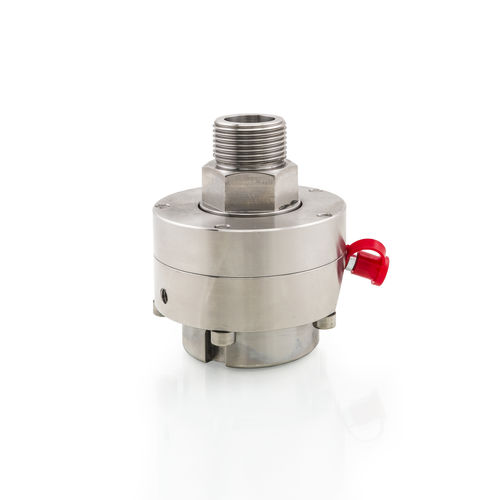

Vacuum rotary union TP 1000
for gasfor steampneumatic

Vacuum rotary union - TP 1000 - Pacquet Industrie - for gas / for steam / pneumatic
Vacuum rotary union - TP 1000 - Pacquet Industrie - for gas / for steam / pneumatic
Vacuum rotary union - TP 1000 - Pacquet Industrie - for gas / for steam / pneumatic - image - 2
Vacuum rotary union - TP 1000 - Pacquet Industrie - for gas / for steam / pneumatic - image - 3
Vacuum rotary union - TP 1000 - Pacquet Industrie - for gas / for steam / pneumatic - image - 4
Add to favorites
Compare this product

Characteristics

Medium
for vacuum, for gas, for steam
Applications
pneumatic, medium-pressure, for the chemical industry
Other characteristics
ball bearing
Rotational speed

Max.: 20 rpm
(125.66 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 30 bar
(435 psi)

Min.: 0 bar
(0 psi)

Nominal size

Max.: 4 in

Min.: 0.25 in

Description

Up to 20 RPM Non-abrasive liquid / Gas / (Vacuum) 1/4” to1” (90° elbow output) / 1/4” to 4” (axial output) Up to 30 bar (435 Psi) Up to 180°C (356°F) Sealing system: Filled PTFE seal Food-processing - Chemical industry - Petrochemical refineries - Factory automation - Waste water treatment - Pneumatic applications Other configurations on request Technical data Male/female thread BSP cylinder For slow rotation use combined with moderate pressure Single row angular contact ball bearing (allowing low torque) Grease fitting and anti-torque section as standard Good resistance to external tension loads
