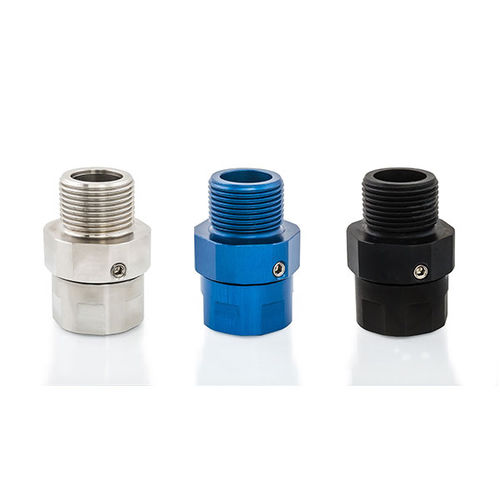

Water rotary union TP 500for vacuumfor gashydraulic
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for vacuum, for gas
- Applications
- hydraulic, pneumatic, low-pressure, for the chemical industry
- Material
- stainless steel
- Other characteristics
- compact, light
- Rotational speed
Max.: 10 rpm
(62.83 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 12 bar
(174 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 2 in
Min.: 0.5 in
Description
Positioning rotating union for flexible hose orientation
Available in several materials
Positioning use or non-continuous slow rotation processes
Medias : Gas / Non-abrasive liquid / (Vacuum)
DN : 1/2” to 1”
Pressure : Up to 12 bar (174Psi)
Temperature : Up to 80°C (176°F)
Sealing system: Lubricated polyurethane seal
Other configurations on request
Full data sheet also available
• Male/female thread BSP cylinder
• Angular movements only
• Single row ball bearing
• Good resistance to external tension loads
