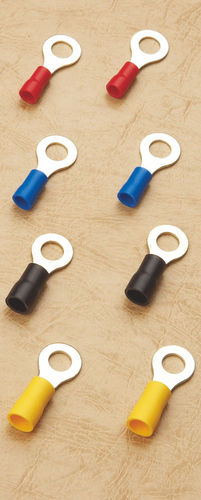

Female cable termination PS-RV5.5 seriesringtubularinsulated
Add to favorites
Compare this product
Characteristics
- Connection type
- female, ring
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper
- Lenght
Max.: 19.2 mm
(0.76 in)Min.: 7.2 mm
(0.28 in)- Outer diameter
Max.: 16 mm
(0.63 in)Min.: 6.7 mm
(0.26 in)
Description
INSULATED RING TERMINALS
SPECIFICATION: 4 ~ 6mm² (12-10), Imax = 48A
- Product Name: INSULATED RING TERMINALS
- Application: Electrical wiring
- Wire Size: 4 ~ 6mm² (12-10 AWG)
- Maximum Current: 48A
- Color: Yellow
- Available Model Numbers: PS-RV5.5-3.5, PS-RVS5.5-4, PS-RVL5.5-4, PS-RV5.5-5, PS-RV5.5-6, PS-RV5.5-8, PS-RV5.5-10, PS-RV5.5-12
Technical Specifications:
- Size options: #6, #8, #10, ¼, 5/16, 3/8, 1/2
- Dimensions (B, L, F, H, DФ in mm): see table above
- Color: Yellow
- Material: Insulated
