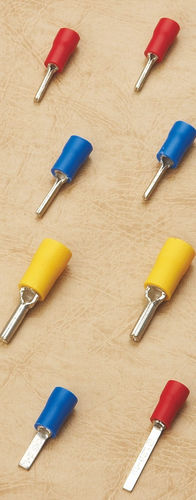

Male cable termination PS-PTV1.25 seriestubularinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Connection type
- male
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper
- Lenght
Max.: 28 mm
(1.1 in)Min.: 19 mm
(0.75 in)- Inner diameter
1.9 mm
(0.07 in)- Outer diameter
4.3 mm
(0.17 in)
Description
Insulated Pin Terminals
Specification: 0.5–1.5mm² (22-16), Imax = 19A
- Product Type: Insulated Pin Terminals
- Wire Range: 0.5–1.5mm² (22-16 AWG)
- Maximum Current: 19A
- Color: Red
- Available Models: PS-PTV1.25-9, PS-PTV1.25-10, PS-PTV1.25-12, PS-PTV1.25-13, PS-PTV1.25-18
- Dimensions (L): 19.0mm, 20.0mm, 22.0mm, 23.0mm, 28.0mm
- Pin Diameter (FФ): 1.9mm
- Height (H): 10mm
- Outer Diameter (DФ): 4.3mm
Catalogs
No catalogs are available for this product.
See all of Paprsky Energy‘s catalogsOther Paprsky Energy products
