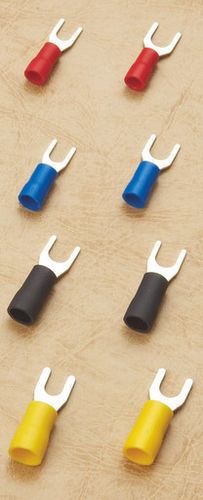

Fork cable termination PS-SV5.5 series

insulated

INSULATED SPADE TERMINALS - 1SPECIFICATION: 4 ̴ 6mm² (12-10), Imax =48AProduct NameSizeScrew Dia d2(mm)DimensionColorB(mm)L(mm)F(mm)H(mm)DФ(mm)PS-SV5.5-3.5#63.78.325.27.512.56.7YELLOWPS-SVS5.5-4#84.38.325.27.5PS-SVL5.5-4#84.39.023.97.5PS-SV5.5-5#105.39.023.97.5PS-SVS5.5-6¼6.59.023.97.5PS-SVL5.5-6¼6.512.031.212.0PS-SV5.5-85/168.414.030.011.5Availability: Usually ships in 24 hoursBrand: PaprskyCategory: Terminal Blocks / Solar AccessoriesModel Numbers: PS-SV5.5-3.5, PS-SVS5.5-4, PS-SVL5.5-4, PS-SV5.5-5, PS-SVS5.5-6, PS-SVL5.5-6, PS-SV5.5-8Color: YellowWire Size: 4~6mm² (12-10 AWG)Max Current: 48ADimensions: See table above for detailed dimensions per modelShips from: Paprsky EnergySKU: Not specifiedUPC: Not specifiedProduct rating: 0 of 5 (No reviews yet)Related products: INSULATED SPADE TERMINALS, INSULATED SPADE TERMINALS - 2, INSULATED SPADE TERMINALS - 3, INSULATED RING TERMINALS - 1, INSULATED PIN TERMINALS - 1Technical Specifications / Features:Type: Insulated spade terminalsWire size: 4~6mm² (12-10 AWG)Max current: 48AColor: YellowMultiple model numbers available (see table)Material and insulation: Not specifiedApplication: Electrical wiring, connectors
