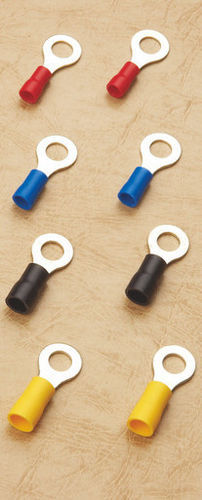

Crimp cable termination PS-RV2 seriestubularinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Connection type
- crimp
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper
- Lenght
Max.: 30.2 mm
(1.19 in)Min.: 17.8 mm
(0.7 in)- Outer diameter
4.9 mm
(0.19 in)
Description
INSULATED RING TERMINALS - 3
SPECIFICATION: 1.5–2.5mm² (16-24), Imax =27A
- Product Name: PS-RV2-3
- Size: #4
- Screw Dia: 3.2 mm
- Dimension B: 6.6 mm
- Dimension L: 17.8 mm
- Dimension F: 4.3 mm
- Dimension H: 10.0 mm
- Dimension DФ: 4.9 mm
- Color: BLUE
High quality and durable, perfect for securing wire connections in various applications.
- Color: BLUE
- Wire size: 1.5–2.5mm² (16-24 AWG)
- Max current: 27A
Technical Specifications / Features:
- Product type: Insulated ring terminals
- Available models: PS-RV2-3, PS-RVS2-3.5, PS-RVM2-3.5, PS-RVL2-3.5, PS-RVS2-4, PS-RVL2-4, PS-RVS2-5, PS-RVL2-5, PS-RV2-6, PS-RV2-8, PS-RV2-10
- Color: Blue
- Material: Insulated
- Wire size: 1.5–2.5mm² (16-24 AWG)
- Max current: 27A
- Dimensions: See table above for detailed dimensions per model
Catalogs
No catalogs are available for this product.
See all of Paprsky Energy‘s catalogsOther Paprsky Energy products
Terminal Blocks
