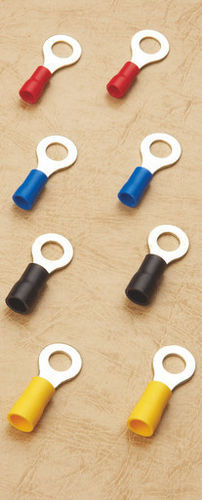

Ring cable termination PS-RV1.25 seriestubularinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Connection type
- ring
- Configuration
- tubular
- Insulation
- insulated
- Material
- copper
- Lenght
Max.: 31.6 mm
(1.24 in)Min.: 17.8 mm
(0.7 in)- Outer diameter
4.3 mm
(0.17 in)
Description
Insulated Ring Terminals - 2
SPECIFICATION: 0.5 ~ 1.5mm² (22-16), Imax = 19A
- Product Name: PS-RV1.25-3
- Size: #4
- Screw Dia: 3.2 mm
- Dimension B: 5.7 mm
- Dimension L: 17.8 mm
- Dimension F: 4.95 mm
- Dimension H: 10.0 mm
- Dimension DФ: 4.3 mm
- Color: RED
- Product Type: Insulated Ring Terminals
- Application: Electrical connections
- Color: Red
- Wire Range: 0.5 - 1.5mm² (22-16 AWG)
- Maximum Current: 19A
- Material: Insulated
- Available Model Numbers: PS-RV1.25-3, PS-RVS1.25-3.5, PS-RVM1.25-3.5, PS-RVL1.25-3.5, PS-RVS1.25-4, PS-RVL1.25-4, PS-RV1.25-5, PS-RV1.25-6, PS-RV1.25-8, PS-RV1.25-10
- Brand: Paprsky
