Water pump PWP1000PA

brushless DCself-primingimpeller

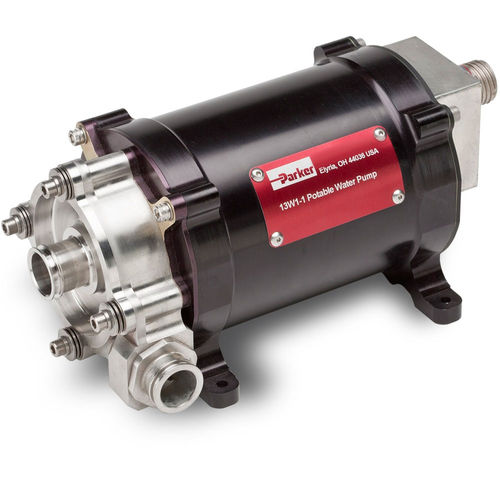

Parker Aerospace in-line potable water pump supplies up to six GPM flow at 18 psi. Equipped with EMI filtering, sensor-less control and locked rotor protection software, and discrete output signals for high-current, high-temperature, and rotor rotation. This pump uses single-phase 1 1 5V AC at frequencies from 360-800Hz to drive a high-efficiency, brushless DC motor. The pump is mounted - in line and uses standard flexible coupling style hydraulic connections. The pump is mounted via four mounting holes in the feet. A standard - military-style connector is used for the electrical connection. - FEATURES AND ATTRIBUTES: - • All wetted surfaces are made up of 316L stainless, making this pump compliant to NSF61 - • Mechanical design allows recovery from freezing while not in use without permanent damage - • The electronics are housed in a dry cavity by way of a canned rotor design - • Canned rotor design allows for elimination of rotating shaft seals - • The wetted carbon bearings allow for long-life fluid film design
