LCD display panel DPS series

LEDmonochromecompact

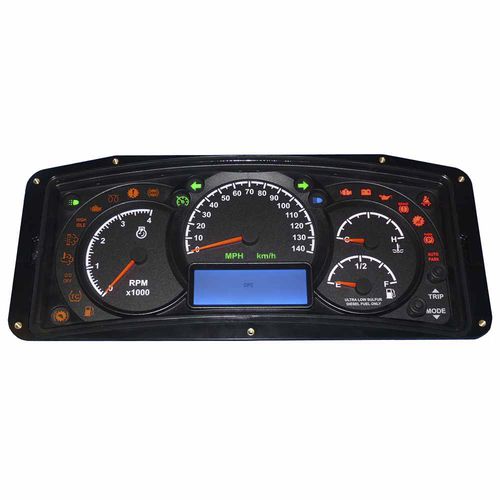

Parker’s DPS (Display Panel Standard) instrument cluster is an innovative user interface that makes complete vehicle information accessible in a single centralized location. By incorporating the DPS cluster, a wide range of industrial vehicles can be operated more efficiently for greater productivity. This versatile instrument cluster supports two CAN communication channels, as well as USB. The DPS has inputs to measure analog, digital and frequency signals and outputs suited for hydraulic control, or general electrical control. The DPS instrument cluster is ideal for various industrial vehicle applications, with 4 or 5 backlit gauges, up to 26 positions for status LEDs (tell-tales), and a 256x80 LCD screen. The robust enclosure has environmentally sealed, Molex MX150 type connectors and is designed to be used in rugged environments. The DPS has a software development kit (SDK) that allows customers to develop their own software and the overlay may be customized, making the DPS perfect for any application. Features/Benefits: • Monitors up to 21 inputs - analog, digital or frequency • 4 or 5 gauges supported • 26 status LEDs • LCD message screen • 2 CAN buses Applications: • Bus and coach instrumentation • Any type of vehicle operator display
