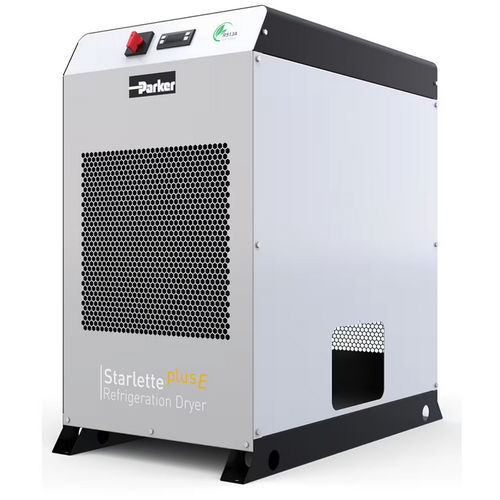

Refrigerated compressed air dryer StarlettePlus-E series
single-stage

refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
refrigerated
Number of stages
single-stage
Engine power

Max.: 0.74 kW
(1.01 hp)

Min.: 0.13 kW
(0.18 hp)

Capacity

Max.: 600 m³/h
(21,188.8 ft³/h)

Min.: 24 m³/h
(847.55 ft³/h)

Working pressure

Max.: 16 bar
(232.06 psi)

Min.: 3 bar
(43.51 psi)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 5 °C
(41 °F)

Ambient temperature

50 °C
(122 °F)

Weight

Max.: 80 kg
(176.4 lb)

Min.: 24 kg
(52.9 lb)

Dew point

3 °C
(37.4 °F)

Description

Parker Hiross StarlettePlus-E Series refrigerated dryers (SPE) are the perfect solution for the efficient removal of water vapour from compressed air. StarlettePlus-E combines quality and efficiency in a reliable design, providing the least impact on the environment and operating costs. Thanks to the highly efficient heat exchanger (E-Pack) design, the refrigerant circuit absorbs less power and requires less refrigerant than other comparative dryers, making StarlettePlus-E the refrigerant dryer in the market with the lowest running costs and the most environmentally friendly. StarlettePlus-E is also available with the additional 'Energy Save' feature, on models from SPE026. When equipped with the Energy Save feature, the SPE models will save additional energy at partial load by cycling the dryer’s compressor activity and using the cold reserve stored in the E-Pack mass to cool the inlet air. Features • For industrial and general air applications requiring a pressure dew point (pdp) no lower than +3°C • High efficiency all-in-one aluminium heat exchanger (E-Pack) • Dual-frequency, ready for 50Hz or 60Hz applications • Digital controller with integrated features • Wall mountable (models up to SPE018) Benefits • Lowest carbon footprint on the market • Lowest running costs and lowest absorbed power • Additional energy savings option available from SPE026 • Low refrigerant volume (avg. 25% lower than comparative ranges)
