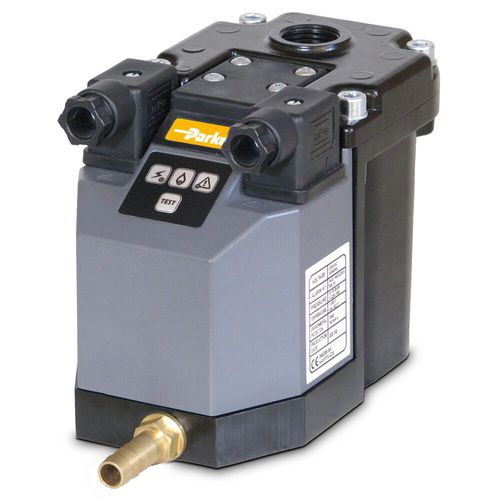

Air drain ED4100 series
condensateautomaticelectronic

air drain
air drain
Add to favorites
Compare this product


Characteristics

Medium
condensate, air
Operational mode
automatic
Type
electronic
Other characteristics
zero-loss
Operating pressure

Min.: 16 bar
(232 psi)

Max.: 50 bar
(725 psi)

Operating temperature

Min.: 2 °C
(36 °F)

Max.: 35 °C
(95 °F)

Description

Automatic zero air loss level sensing condensate drains for industrial compressed air treatment applications up to 50 barg. The safe and reliable removal of large amounts of condensate, especially at critical installation points, such as compressor aftercoolers, storage vessels, and separators, where approx. 70 to 80% of condensate arises, really make Parker Zander's ED4100 range of condensate drains stand out. The ED4100's integrated dirt filter, large valve cross-section, direct controlled 2/2-way solenoid valve and capacitive level sensing allows for the safe, reliable, and economical removal of condensate, whilst simultaneously preventing any loss of compressed air. Features • Zero air loss • Automatic level sensing operation • Maximum operating pressure 50 barg • Self-monitoring and cleaning • NPT and BSP-P options available Installation is simple and secure using the wall bracket provided, as well as upper or side attachment, allowing for vibration-free installation - even in enclosed spaces. For low ambient temperatures, a heater can be retrofitted. A service kit that contains all of the required wearing parts is available for quick and easy maintenance.
