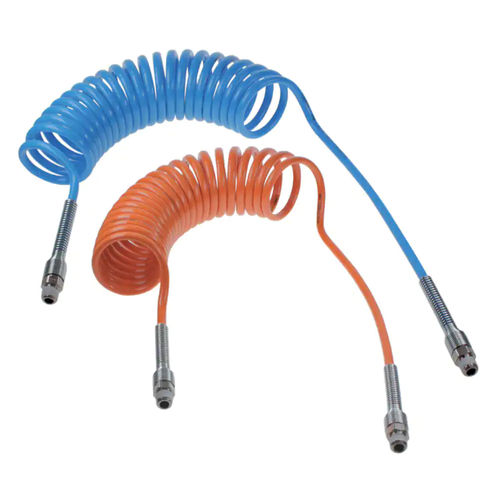

Compressed air tube SP series
PAcleaninglubrication

compressed air tube
compressed air tube
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
PA
Applications
cleaning, lubrication
Other characteristics
multiple, silicone-free, spiral, pre-assembled
Inner diameter

Min.: 3.1 mm
(0.122 in)

Max.: 12.7 mm
(0.5 in)

Outer diameter

Min.: 4.7 mm
(0.185 in)

Max.: 15.8 mm
(0.622 in)

Pressure

20 bar
(290.075 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Delivered length

Min.: 2 m
(6'06" )

Max.: 22.5 m
(73'09" )

Description

Parker Legris recoil tubing has a lasting memory after multiple uses, offering an alternative to reels for excellent ergonomics and space saving. The pre-assembled tubes are equipped with a protection spring, preventing damage to the ends. Features/Benefits: - Excellent Mechanical Properties • Low pressure drop • Good chemical compatibility • Self-retracting • Identical technical performance to PA tubing - Comprehensive Range • Ready-to-use • Various colours for circuit identification • Available with pre-assembled connectors Markets: • Machine Tools • Primary Metal Refining and Processing • Miscellaneous Manufacturing • Vehicle Assembly Facilities • Transportation Applications: • Compressed Air and Lubricants Conveying • Maintenance Workshop • Industrial Cleaning • Car Washing • Power Hand Tools Technologies: • Polyamide Tubing • Recoil Tubing • Industrial Tubing Technical Characteristics: • Fluids: Compressed air, lubricants, Other fluids: please consult us • Materials: Polyamide (68 Shore D)
