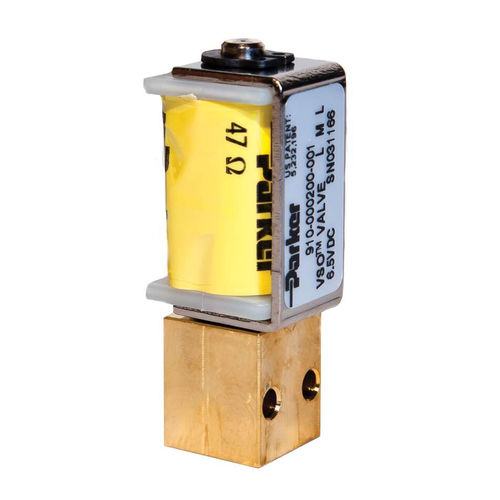

Low-flow solenoid valve 910-000200-00 series
direct-operated2-wayNC

low-flow solenoid valve
low-flow solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for gas
Body
miniature, IP65, stainless steel, brass
Other characteristics
ISO, proportional, pulse, low-flow, control, calibration, thermal
DN

0.076 mm
(0.003 in)

Voltage

7 V, 8 V, 12 V, 18 V, 24 V

Temperature

Max.: 55 °C
(131 °F)

Min.: 5 °C
(41 °F)

Pressure

Max.: 150 psi

Min.: 0 psi

Description

Low Flow, 2-way normally closed (NC) proportional valve with integrated thermal compensation to maintain accurate and repeatable flow over a wide range of media. The Parker VSO® Low Flow valve provides enhanced flow control for applications where precise control flow control is required between 0 - 500 sccm. Like the VSO miniature proportional valve, the VSO® Low Flow miniature proportional valve provides precise flow control of gas in proportion to input current. The valve can be controlled with either DC current or pulse width modulation along with closed loop feedback to deliver optimal system performance. Together with its ability to provide precise control over a wide range of media, the VSO® Low Flow miniature proportional valve is ideally suited for manufacturers of Gas Chromatography and Mass Spectrometry equipment. Markets • Analytical Chemistry • Patient Monitoring • Respiratory Features/Benefits • Enables precise low flow (0 – 500 sccm) control for improved instrument accuracy • Thermally compensated to maintain precise flow over a wide range of media • Computer automated calibration and serialization for performance traceability • Cleaned for Oxygen and Analytical Service use • Proven performance tested to 10 million life cycle • Reach, RoHS, ISO 15001, IP65, and CE compliant Applications • Gas Chromatography • Mass Spectrometry • Pressure & Flow Control • Mass Flow Control • Portable medical device equipment
