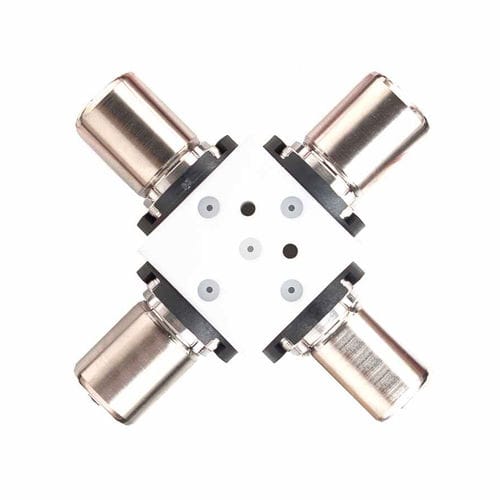

Direct-operated solenoid valve 018-00 series
2-wayNCair

direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
air
Body
compact, PTFE, miniature, manifold, asymmetrical
Other characteristics
total isolation, multiple, diaphragm
DN

1.52 mm
(0.06 in)

Voltage

9 V, 12 V, 24 V

Temperature

Min.: 4 °C
(39 °F)

Max.: 66 °C
(151 °F)

Pressure

20 psi

Description

Parker's Series 18 family of PTFE Manifold isolation valves provide an inert wetted path for biocompatibility and aggressive liquids with rapid response times for multiple channels of accurate liquid control. The Parker Series 18 is designed for compact installation in multi-liquid systems. Available with multiple inlets and one outlet (or vice-versa), the Series 18 features all wetted parts of PTFE. In the Series 18 tubing and connections between discrete valves are eliminated and dead volume is reduced. Repeatability and rapid response time make the Series 18 ideally suited for accurately controlling small percentages of low flow liquids. Markets: • Clinical Diagnostics • Analytical Chemistry Features/Benefits: • Provides chemical compatibility for a wide range of media with all wetted parts PTFE • Low internal volume for reduced delay volume • Low power for reduced heat generation and power consumption • Fast response times for accurate and repeatable results • Symmetrical design ensures fluid path length and timing is identical for each fluid channel • 100% tested tight leak rate provides assurance of a quality seal • Provides reliable operation for the life of your instrument • RoHS compliant Applications: • Liquid Chromatography Gradient Generation • Liquid Selection and Mixing Valve
