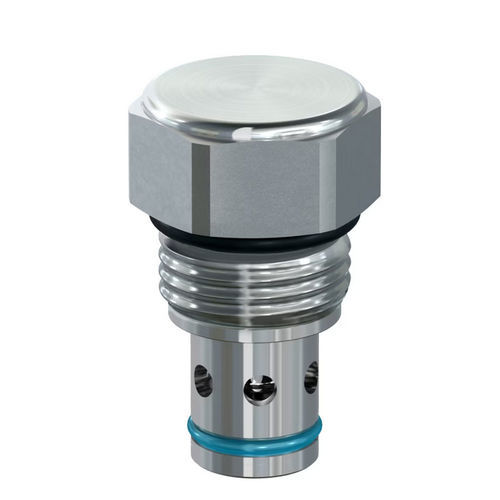

Ball check valve CVH201P65V

poppetbackflowspring

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite. Parker’s robust poppet and ball style check valves are designed for the most demanding applications with flows up to 303 lpm (80 gpm) and pressures as high as 420 bar (6,000 psi) across several markets such as agriculture, construction, and industrial manufacturing. These valves feature a hardened poppet or ball and seat design that keeps leakage as low as 5 drops per minute or less while lengthening service life due to improved wear characteristics, and the wide selection of crack pressures available ensures easy system integration with reliable performance. Markets: • Agriculture • Construction Equipment • Material Handling Equipment • Miscellaneous Industrial • Miscellaneous Manufacturing • Miscellaneous Mobile Features/Benefits: • Wide range of body sizes, crack pressures, and flow capacities • Low leakage – less than 5 drops/min • Simple construction – extremely cost effective • High tolerance for contamination • All external parts zinc plated Applications: • Load holding • Component isolation • Backflow prevention • Anti-cavitation • Markets where cleanliness is an issue Additional Technical Insight: Parker ball type check valves are designed with a ball held against a seat by a spring. This prevents flow in one direction at all times,
