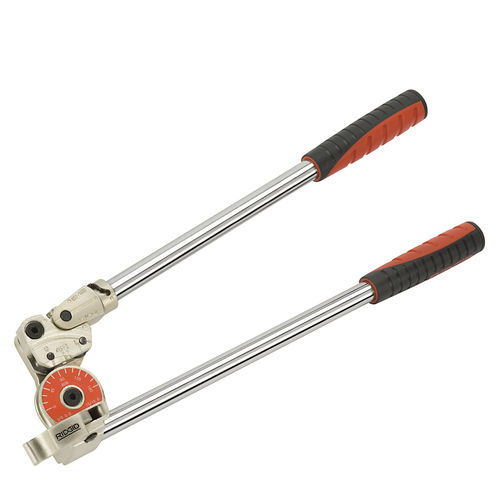

Handheld bending machine 3-2829
manualtube

handheld bending machine
handheld bending machine
handheld bending machine
Add to favorites
Compare this product


Characteristics

Configuration
handheld
Operation
manual
Product handled
tube
Bending capacity

Max.: 1 in

Min.: 0 in

Bending radius

Max.: 3.75 in

Min.: 0.43 in

Description

Parker's Medium Duty Tube Hand Benders are designed for fast, accurate bends and long service life. These benders can be used in hand or mounted in a bench vice, and come in eight common inch tube OD sizes from 1/8” to 3/4”. Features/Benefits: • Will bend copper, aluminum, annealed steel and stainless steel tube. • Can work with any size wall thickness for copper and aluminum tube. Applications: • Bending metal tube for industrial and mobile hydraulic and pneumatic applications Technical Characteristics: - Maximum Recommended Wall Thicknesses for Steel and Stainless Steel Inch Tube: • 0.032” for 1/8” OD and 3/16” OD, • 0.083” for 1/4” OD, 5/16” OD, 3/8” OD and 1/2” OD • 0.065” for 5/8” OD and 3/4” OD - Minimum Wall Thicknesses Without Flattening: • 0.12” for 1/8” OD • 0.020” for 3/16” OD • 0.028” for 1/4” OD • 0.032” for 5/16” OD and 3/8” OD • 0.042” for 1/2” OD and 5/8” OD • 0.049” for 3/4” OD Product Type Bender Tube Material copper, aluminum, steel, and stainless steel
