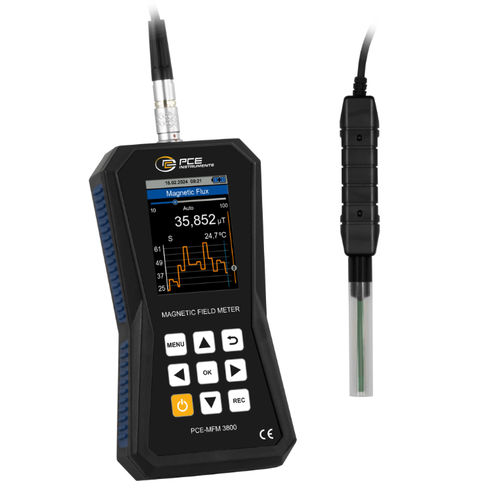

Magnetic field measuring instrument PCE-MFM 3800

industrial

Electromagnetic Field Meter with transverse sensor / Direct (DC) and alternating fields (AC) / USB-C interface / Data memory / Temperature measurement / Various display modes The Electromagnetic Field Meter is a high-precision measuring instrument for recording magnetic flux and temperature. It is ideal for applications in industry, research and development. With a measuring range of 0 to 3500 mT for direct (DC) and alternating (AC) fields and a high resolution of 0.001 mT, the Electromagnetic Field Meter delivers precise measurement results even at very low field strengths. Thanks to the automatic detection of AC or DC fields and the option of automatic or manual range selection, the device is particularly user-friendly. It measures with an accuracy of up to ±0.5% of the measured value (DC) and ±1% (AC at 50 Hz). The Electromagnetic Field Meter is equipped with a sensor that measures transversely, i.e. the magnetic field is measured at right angles to the sensor direction. With alternating magnetic fields (AC), the device can also display the frequency in the range from 10 to 50 Hz. In addition to the magnetic flux density, the Electromagnetic Field Meter can also measure temperatures in the range from 0°C to 80°C (32°F to 176°F) - with an accuracy of ±0.4°C / 0.7°F. The device has a 2.8-inch TFT colour display and an internal SD card with 32 GB memory, on which up to 10 million measuring points can be stored. With various measurement modes (hold, maximum, average function) and support for over ten languages, the Electromagnetic Field Meter can be used flexibly and internationally. Power is supplied via a powerful LiPo battery or alternatively via USB.
