Radiation meter with alarm PCE-EMF 10

with visual alarmdigital displaywith audible alarm

Product description
The EMF meter is a 3-in-1 instrument for measuring electric field strength, magnetic field strength and power flux density. It measures electric field strength in the range 1 … 1999 V/m (resolution 1 V/m), magnetic field strength in the ranges 0.1 … 999.9 mG (resolution 0.1 mG) and 0.01 … 99.99 µT (resolution 0.01 µT), and power flux density in the range 0.1 … 999.9 mW/m² (resolution 0.1 mW/m²). Accuracy for all measured quantities is ±5 %. Bandwidth is 40 Hz to 10 GHz. Magnetic field measurement is performed on three axes.

Display and operation

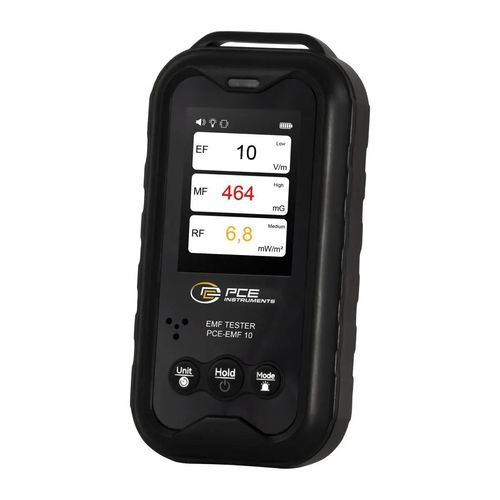

The device features a 2.4-inch TFT color display with four switchable display modes. In the measurement modes for power flux density, electric field strength and magnetic field strength, real-time value, historical average and maximum value as well as the measurement trend are shown graphically. The overview mode displays the three measurement areas simultaneously with their alarm states. Additional functions: hold, switching magnetic units between µT and mG, acoustic/optical/vibration alarm on threshold exceedance. Automatic power-off is activatable/deactivatable after 15 minutes. Power supply via integrated rechargeable lithium-ion battery, chargeable via USB-C.

Application
Suitable for investigating electromagnetic fields in dwellings, offices and computer environments, and for measuring electromagnetic fields around electrical and high-frequency devices.

Features

• Electric field strength: 1 … 1999 V/m
• Magnetic field strength: 0.01 … 99.99 µT (also 0.1 … 999.9 mG)
• Power flux density: 0.1 … 999.9 mW/m²
• Bandwidth: 40 Hz … 10 GHz
• Measurement functions: Hold, Max value, Average value
• Alarm: acoustic, optical, vibration
• Real-time curve display

Specification (from table)
Electric field strength - Range: 1 ... 1999 V/m; Resolution: 1 V/m; Accuracy: ±5 % of reading.
Magnetic field strength - Range: 0.1 ... 999.9 mG; Resolution: 0.1 mG; Accuracy: ±5 % of reading.
Magnetic field strength - Range: 0.01 ... 99.99 µT; Resolution: 0.01 µT; Accuracy: ±5 % of reading.
Power flux density - Range: 0.1 ... 999.9 mW/m²; Resolution: 0.1 mW/m²; Accuracy: ±5 % of reading.
General data:
Measurement functions: HOLD, Average, MAX
Display type: TFT-LCD
Display size: 2.4 inch
Interface: USB-C
Sensor: broadband RF
Auto power-off: 15 min (deactivatable)
Bandwidth: 40 ... 10000000000 Hz
Alarm: optical, acoustic, vibration (alarm ranges see manual)
Menu language: English (US), English (GB)
Protection class (device): IP20
Power supply: 5 V DC
Battery: 1 x 3.7 V BF103450, Lithium
Capacity: 1800 mAh
Energy: 6.66 Wh
Operating conditions: -10 ... 45 °C, 0 ... 80 % r.H.
Storage conditions: -10 ... 45 °C, 0 ... 80 % r.H.
Dimensions (L x W x H): 127 x 65 x 32 mm
Weight: 163 g

Delivery contents

• 1 x EMF meter PCE-EMF 10
• 1 x USB-C cable
• 1 x storage pouch
• 1 x user manual
