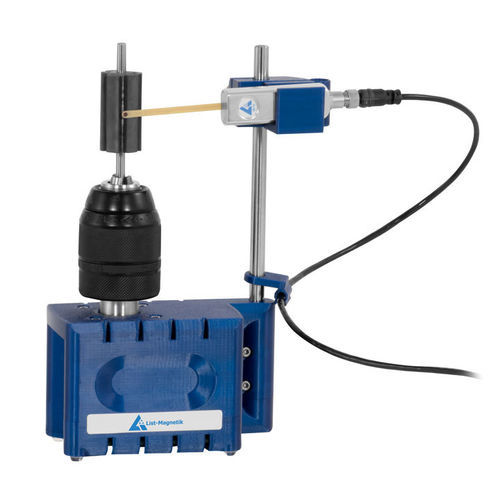

USB gaussmeter Rotor-Check 400

teslameterdigital

Short description
The Rotor-Check 400 LM-MP-RC400 is a compact test instrument for characterizing the magnetic field strength curve of rotors. The unit and its measuring probe connect to a Windows PC via USB and work with the RotorCheck software to record, analyze and export measurement curves.

Application information

• Radial and axial measurements on magnet rotors
• Evaluation of magnetisation and magnet quality
• Detection of assembly errors in lamination stacks
• Analysis of core inhomogeneities and pole irregularities
• Determination of lamination stack position relative to the shaft
• Detection of stray-field magnetisation and local/global pole peaks

Operation
An accurate high-resolution stepper motor rotates the rotor up to 360°. The measuring probe is maintained at a constant distance by a height-adjustable mount to ensure comparable readings during rotation. The rotor shaft thickness supported is up to 13 mm and the probe reach is adjustable up to 12 cm. Rotation speed is selectable in three modes to trade off time and sampling density: 90 s = 1000 points, 45 s = 500 points, 23 s = 200 points.

Delivery contents (short)

• Magnetic field tester / Magnetometer LM-MP-RC400
• Transversal flexible reed probe LM-MP-PM4-TR
• USB connection cable
• 3 mounting brackets
• Probe connection cable USB-C
• RotorCheck software (download)

Technical specifications

• Measurement range (A/cm): 0 … 40000 A/cm
• Resolution (A/cm): 0.1 A/cm
• Accuracy (A/cm): ±1 A/cm up to 50 A/cm; ±2% of reading above 50 A/cm
• Measurement range (mT): -4000 … +4000 mT
• Resolution (mT): 0.01 mT
• Accuracy (mT): ±0.13 mT up to 6.28 mT; ±2% of reading above 6.28 mT
• Sensor designation: LM-MP-PM4-TR
• Height-adjustable probe holder: up to 12 cm
• Max rotor diameter: 60 mm
• Rotor shaft thickness: up to 13 mm
• Calibration: zero-point calibration via software (without rotor)
• Protection class (device): IP20
• Power supply: 5 V DC (USB)
• Operating conditions: 0 … 50 °C, 10 … 90 % RH
• Storage conditions: 0 … 50 °C, 10 … 90 % RH
• Dimensions (L x W x H): 120 x 60 x 195 mm
• Weight: 780 g
• Rotation: 360° by stepper motor, up to 1000 measurement points per revolution
• Data output: export as CSV and PNG; RotorCheck software included
