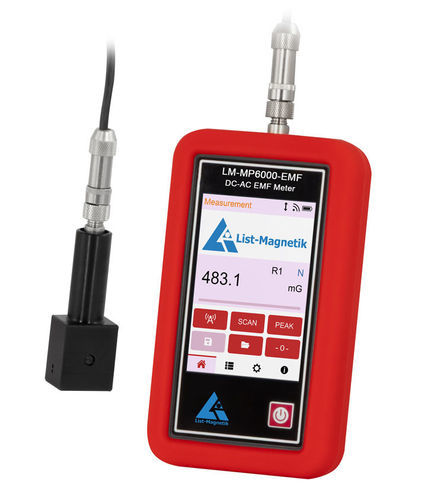

Magnetic field measuring instrument LM-MP6000-EMF

digital

Product Description

• The EMF Fluxgate Magnetic Field Meter LM-MP6000-EMF is designed for measuring very weak magnetic fields and testing according to IATA953.
• With the List-Magnetik LM-MP6000-EMF fluxgate magnetometer, very weak DC and AC magnetic fields in the range of 0-400 µT (microtesla), 0-4 G (gauss), or 0-300 A/m can be measured.
• The device operates with a transverse fluxgate probe.

Special Applications

• Detecting magnetic fields in packages or luggage without opening, especially for compliance with IATA packaging regulation 953 and UN 2807 (dangerous goods regulation for magnetized materials).
• Approval for air transport when magnetic field strength is below 0.159 A/m (2 mG, 200 µT) at 2.1 m distance.
• Labeling requirement when magnetic field strength is below 0.418 A/m (5.25 mG, 525 µT) at 4.6 m distance.
• More strongly magnetic items are not approved for air freight.

Sensor and Applications

• Highly sensitive fluxgate sensor for precise measurements in research, development, geophysics, archaeology, aerospace, navigation, building biology, and for measuring magnetic shielding.

Measurement of Earth's Magnetic Field and Disturbances

• Suitable for measuring the Earth's magnetic field and weak magnetic low-frequency disturbances.
• Horizontal component of the Earth's magnetic field in Europe is about 20 mT, vertical about 44 mT.
• Weak electromagnetic alternating fields (e.g., from electrical devices) can be graphically displayed with frequency indication, Fourier analysis supports evaluation.

Scan Function

• Scan function for area-wide detection of stable DC fields, statistical evaluation possible.
• Ideal for magnetic field line analysis and magnetic flux measurement.

Memory and Interfaces

• Flexible measurement value memory, combined digital and analog display, peak value measurement.
• Wireless interface for data transfer to Windows PC, Android, and iOS apps.
• USB interface for external power supply and SCPI interface for remote control and automated measurements.

Calibration Standard

• Optional calibration standard (reference magnet) for accuracy control.
• Suitable for precise and standard-compliant magnetic field measurements in laboratory, development, and production.

Technical Data
Measurement units: µT, mT, mG, G, A/m
Probe: transverse fluxgate probe
DC / AC field measurement range: 0-4 G, 0-0.4 mT, 0-300 A/m
Accuracy: ± 2% of the measured value
Resolution: 0.1 mG, 0.01 µT, 0.01 A/m
AC frequency range: max. 2 kHz
Peak value memory: pulse time > 0.2 sec.
Operating conditions: 0-50 °C
Storage conditions: 0-50 °C, 10-90%
Protection class: IP 64
Display: LCD touch panel color 320x480 pixels
Display size: 75 x 50 mm
Menu navigation: German, English, Italian, French, Spanish
Measurement value memory: 10,000 measurements, flexibly divisible
Statistics: number / minimum / maximum, mean / standard deviation
Interface: wireless interface for communication with Android, iOS, and Windows
App for Android, iOS, Windows: Free via Google Play Store, Apple App Store, List-Magnetik homepage
External control: via USB and SCPI interface
Power supply: 3x1.5 V AA batteries. External power supply via USB
Operating time: approx. 25 hours with battery, unlimited with external power source
Dimensions: 150 x 85 x 35 mm
Packaging dimensions: 28 x 23 x 9 cm
Weight: 320 g with batteries

Characteristics / Specifications

• Measurement of very weak magnetic fields (DC and AC)
• Transverse fluxgate probe
• Flexible memory and interface options
• Statistical evaluation and scan function
• Multilingual menu navigation
• Robust housing, protection class IP 64
• Suitable for professional and industrial applications
