Hand data matrix and barcode reader Ident-Ex® 02

1D2Dwith image capture

Description
The Ident-Ex® 02 is the smallest and lightest wireless 1D/2D barcode scanner and reader certified for Zone 1/21, Zone 2/22 and Class I/II hazardous areas. Built with German engineering and a Honeywell scan engine, it is offered in four configurations (Pocket, Grip, Grip+, Smart Grip) and supports Flex Range and Long Range scanning options. The device can operate stand-alone with internal battery and local memory for independent workflows.

Key highlights

• Compact, lightweight and modular design for mobility and ergonomic use

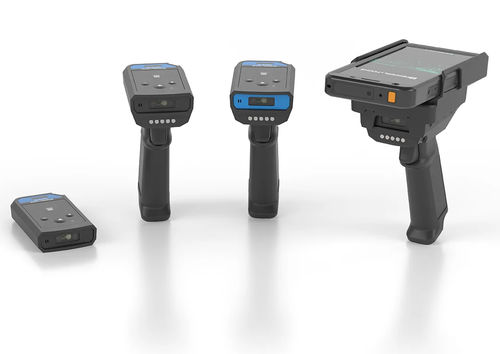

• Four configurations: Pocket, Grip, Grip+, Smart Grip (Grip/Grip+ convertible to Smart Grip)
• Honeywell FlexRange™ N6803FR (Flex Range) and N6803LR (Long Range)
• Bluetooth® 5.4 with Bluetooth Low Energy
• IP68 protection (EN/IEC 60529)

Variants / Models

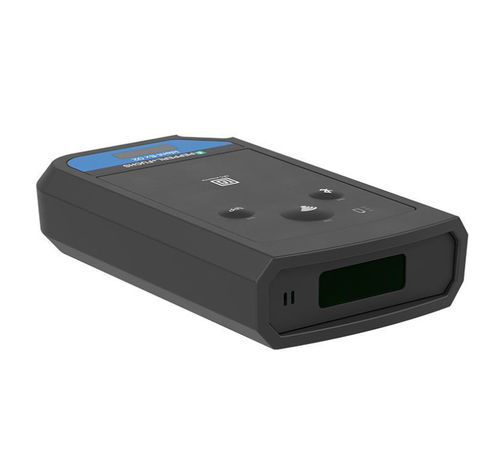

• Pocket — stand-alone portable scanner (approx. 162.5 g)
• Grip / Grip+ — Pocket with ergonomic trigger handle (Grip+: HMI version, approx. 280.5 g)
• Smart Grip — Grip with cradle for Smart-Ex® smartphone (approx. 356 g without phone)
• Scanning options: Flex Range (up to 10 m) or Long Range (up to 25 m). Grip+ is available only with Flex Range.

Configuration table (selection)
Article No. | Configuration Code | Model
70198683-100000 | IDENT-EX02-DZ1-AI--F-P00-00-.. | DZ1, Flex Range, Pocket
70198683-100001 | IDENT-EX02-DZ1-AI--F-G00-00-.. | DZ1, Flex Range, Grip
70198683-100003 | IDENT-EX02-DZ1-AI--F-H00-00-.. | DZ1, Flex Range, Grip+
70198683-100004 | IDENT-EX02-DZ1-AI--L-P00-00-.. | DZ1, Long Range, Pocket
70198683-100010 | IDENT-EX02-DZ1-AI--F-S00-00-03 | DZ1, Flex Range, Smart Grip S03
70198683-100012 | IDENT-EX02-DZ1-AI--F-S00-00-23 | DZ1, Flex Range, Smart Grip S203 (see safety note)

Scope of delivery

• Scanner
• USB-C charging cable
• Documentation
• Grip (only with Grip, Grip+ and Smart Grip)
• Cradle (only with Smart Grip)

Applications and use cases
The Ident-Ex® 02 is suitable for scanning, imaging & AutoID, warehousing & logistics, life sciences & pharmaceutical (HMI), asset tracking, chemical & fine-chemical environments, gas bottle filling & tracking, aircraft fuel delivery, operator rounds, maintenance/inspection, coatings, wood/cask tracking and direct part marking in defense applications.

Safety notice
When using the Ident-Ex® 02 Smart Grip DZ1 with a Smart-Ex® 203 attached, entry is restricted to Zone 2/22 (Division 2) areas only. For Zone 1/21 (Division 1) areas use the appropriate DZ1-certified smartphone (Smart-Ex® 03 DZ1).

Technical specifications

• Scan engine: Honeywell FlexRange™ N6803FR and N6803LR
• Read distance: Flex Range ≤ 10 m; Long Range ≤ 25 m
• Field of view: Flex Range near 48° x 21° / far 20° x 12°; Long Range near 48° x 21° / far 13.7° x 7.6°
• Resolution: Flex Range near 1920 x 800 px (near), 1280 x 800 px (far); Long Range 1920 x 800 px (near & far)
• Scan rate: Flex Range 40 fps default (60 fps max); Long Range 30 fps default
• Aimer: Flex Range green laser dot; Long Range red laser dot (Class 2)
• Illumination: white
• Supported symbologies: Linear, 2D Stacked, 2D Matrix, Postal (see full list in datasheet)
• Bluetooth®: 5.4 with Bluetooth Low Energy
• Battery: Li‑Ion 1430 mAh (operates for a full shift)
• Charging: Fast USB Type-C; Grip/Grip+/Smart Grip optional magnetic charging pins or docking station
• Degree of protection: IP68 (EN/IEC 60529), 1.5 m for 45 min
• Mass: Pocket approx. 162.5 g; Grip / Grip+ approx. 280.5 g; Smart Grip approx. 356 g (without smartphone)
• Dimensions (L x W x H): Pocket 98.4 x 57.11 x 20.4 mm; Grip/Grip+ 113 x 57 x 151 mm; Smart Grip 128 x 90 x 190 mm (without smartphone)
• Ambient conditions: Relative humidity up to 95% at 50°C, non-condensing
