Heavy load shoring tower VARIOKIT VST

heavy-dutyadjustablemodular

Overview

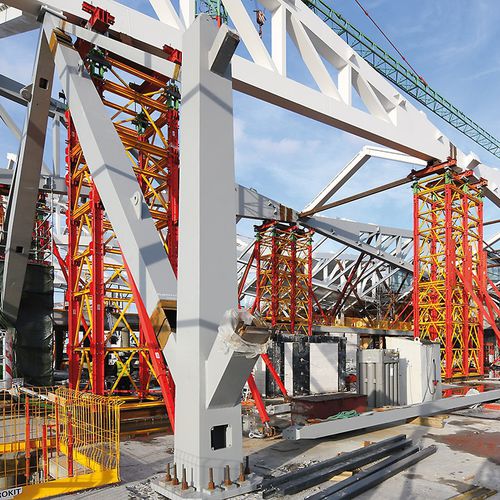

The VARIOKIT VST Heavy‑Duty Shoring Tower is a modular shoring system engineered for central transfer of very large loads in bridge and industrial construction. It can be erected as a single tower, interconnected birdcage scaffold or main‑beam frame using bolted, pre‑assembled segments to accelerate onsite assembly.

Key benefits / in action

• Fast assembly: bolted connections and pre‑assembled tower modules up to 10 m reduce erection time.
• Height adjustment under load: moving hydraulics operate the head spindle for controlled raising and lowering while loaded.
• High load capacity: documented capacities up to approx. 700 kN per leg (project- and standard-dependent).
• Flexible configurations: individual towers, main‑beam frames and birdcage scaffolds possible to match project demands.
• Logistics & availability: system components available via PERI rental parks for project‑based supply.

Applications
Temporary support where centralized transfer of very large loads is required: bridge works (spans, arches, bearings), abutments and piers, heavy industrial installations, and special assembly sites requiring high temporary load capacity.

Variations

• 4‑leg towers: standard footprint 2 m × 2 m; configurable up to 6.50 m × 6.50 m to meet static requirements.
• Towers with additional legs: increase local load capacity in high‑load zones, enabling in‑situ doubling of bearing capacity.
• Birdcage scaffold: connect individual tower frames to increase cross‑sectional stiffness in the transverse direction.
• Main beam frames: used for abutments and piers; system can be implemented as main beam frames up to 10 m head‑support height (with head support).

Technical specifications

• Model: VARIOKIT VST Heavy‑Duty Tower
• Use: shoring for very large loads in bridge and industrial construction
• Assembly: bolted connections; pre‑assembled tower segments up to 10 m
• Standard footprint (4‑leg): 2 m × 2 m; expandable up to 6.50 m × 6.50 m
• Optional: additional legs to increase load‑bearing capacity in‑situ
• Configurations: single tower, birdcage scaffold, main beam frames
• Maximum main‑beam/head‑support height: up to 10 m (with head support)
• Height adjustment: head spindle operated by moving hydraulics (operable under full load)
• Reported load capacity: up to approx. 700 kN per leg (project and standard dependent)
• Supply / logistics: components available via PERI rental parks
