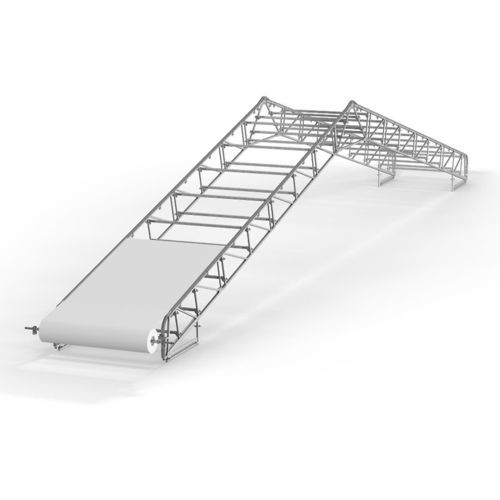

Temporary roofing structure PERI UP Flex

Overview
PERI UP Flex Weather Protection Roof (LGS) is a lattice-girder based temporary roofing system designed to protect worksites from weather and enable safe working conditions over large spans.

Product summary
With the PERI UP Flex Weather Protection Roof, temporary protective roofing can be assembled quickly by pre-assembling modules on the ground and lifting them by crane. The system is suitable for roof refurbishment, extensions, bridge and motorway sites, and winter operations. LGS modules accommodate large spans and high loads. A movable version is available as an option.

PERI UP Flex Weather Protection Roof in action

• Fast assembly: Pre-assembly on the ground and crane lifting of complete girder packages.
• Flexible adaptability: Configurable for different roof pitches and geometries.
• Safe access: Walkways on roof segments allow work without personal fall-arrest equipment in many configurations.

Technical information (excerpt)

• Scaffold type: Weather Protection Roof
• Dimensions: Height: 150 cm (LGS standard elements); Length: 300 cm or 150 cm (standard elements); Standard roof pitch: 15° (other pitches on request)
• Type of use: Protective scaffolding
• Construction type: Lattice girder (binder)
• Load class: Class 1–4 (0.75–3.00 kN/m²); optional up to Class 6 (0.75–6.00 kN/m²)
• Decking: Steel
• Structure principle: Pre-assembly on the ground
• Standards: DIN EN 12810, DIN EN 12811
• Span capability: Up to 45 m (up to 35 m without undervoltage)

Standard applications / Compatibility

• Roof refurbishments, extensions, bridge and motorway works, winter site protection
• Compatible with PERI UP scaffolding kits and the VARIOKIT engineering kit
