Suspended scaffolding PERI UP Flex

heavy-dutymodular

Short description

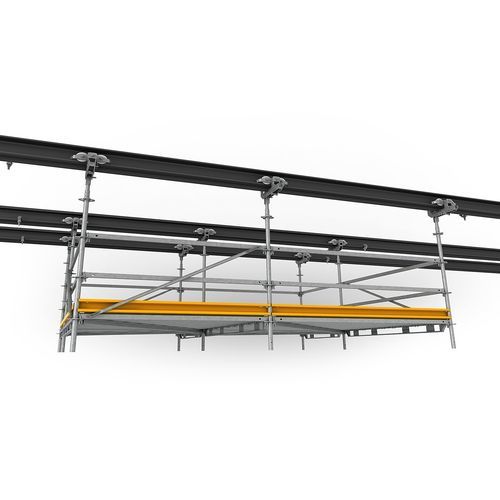

Modular suspended scaffold system based on PERI UP Flex, equipped with the UFS 20 trolley for movable working platforms on structures such as oil platforms and bridges.

Overview
PERI UP Flex Suspended Scaffold provides temporary, secure access for large-area work. Platforms are assembled from modular PERI UP Flex components. The UFS 20 trolley is designed for movable solutions and can be fitted beneath oil platforms or to I-shaped steel girders on bridges, enabling rapid, cost-efficient access to extensive areas. The trolley supports loads up to 19.7 kN and allows safe manoeuvring of entire platforms.

In action

• Fast & Adaptable: Short erection times with safe assembly without traditional pipework and couplings. Platform decking can be set with 25 cm spacing.
• Smooth & Variable: Entire platforms can be moved smoothly and easily; the system adapts to variable steel girder spacing.

Product Data Sheet
Technical specifications on the product page include scaffold type, intended use, applicable standards and permissible loads.

Technical specifications

• Scaffold type: Hanging scaffold
• Type of use: Scaffolding
• Standards: DIN EN 12810 and DIN EN 12811; load classes 1–4 (0.75 kN/m² – 3.00 kN/m²) and 1–6 (0.75 kN/m² – 6.00 kN/m²)
• Permissible load: Up to 31.0 kN per standard (with double screw connection)
• Trolley (UFS 20): designed for movable solutions; supports up to 19.7 kN; enables safe manoeuvring of whole platforms
