Facade scaffolding PERI UP Easy

stairwaymodular

Product Overview

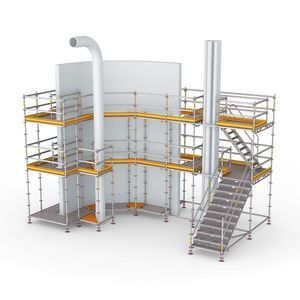

PERI UP Easy is a frame-based façade scaffolding system designed for rapid, safe assembly on building façades. The basic structure is erected with a minimum number of couplers and an Easy quick anchoring system that reduces installation time. The system supports metric modulation and is compatible with the PERI UP product family for integrated access and platform solutions.

Key benefits

• Rapid assembly with few couplers and low tool requirement
• Early installation of guardrails from the secured lower level
• Compatibility with PERI UP components (access stairs, modular platforms)
• Efficient logistics and reduced component count for corners and special details
• Low individual component weights (examples: standard frames approx. 7–11.5 kg depending on variant)

Applications

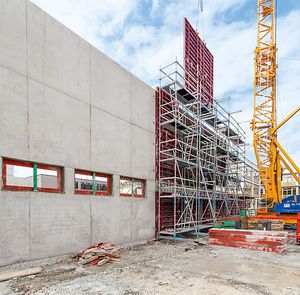

• Working scaffold and protective scaffold for façade renovation and new build
• Finishing trades: insulation, cladding, plastering, welding and other façade works
• Suitable for complex façade geometries and long-span sections due to modular lengths

In action / Media

• Assembly and demonstration videos showing quick anchoring, integrated guardrail hook and step-by-step erection
• Case studies illustrating use on recladding and high-access projects where fast assembly and continuous edge protection are required

Technical specifications

• Scaffold type: Facade scaffolding
• Width classes: SW 03, SW 06, SW 09, SW 12, SW 15 (system widths include 67 cm and 100 cm frames)
• Load classes: LK 1–LK 6
• Module lengths: from 50 cm up to 300 cm
• Platform types: UDG (25 cm), EDS (33 cm), combi and steel platforms
• Working height: according to standards, up to 24 m
• Grid: Metric modulation
• Assembly principle: Advance assembly in-system according to TRBS 2121-1
