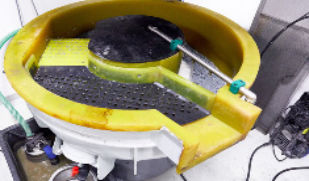

A vibration treatment is only successful when the separation process is perfect. The chips & compound must be completely separate from the workpieces. This is done via a separation sieve, where the chips & compound falls through the holes in the sieve and workpieces are led straight out of the vibration table. The separation strainer can be made of polyethylene or wire grid. Depending on the type of separation type of machines, the separation sieve is maintained in place with wedges or clamping screws enabling the sieve to be replaced without problems when/if required. The separation flap is supported by the transition edge of the slope area. • Mechanical activation is done by means of a pneumatic cylinder • Operation is done by moving a flap-activation pin on the control cabinet which over a solenoid valve will operate the separation flap The workpieces are being moved up through the slope area onto the horizontal area over the sieve and out of the vibrator machine. The chips fall through the sieve and remain in the ”Vibra-Line” machine. Standard discharge screen made of PU with square holes 20 x 20 mm., can be adjusted with jigsaw to items and media as required. Other size sieves can be required but will then be offered as an optional part.
