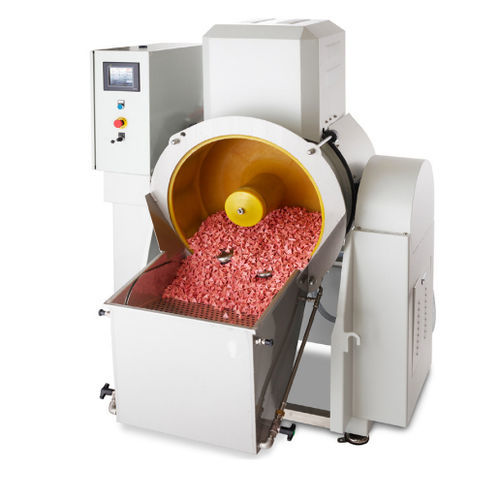

Sanding deburring machine Turbo-Line

automatic

When the process starts, water will be added to the bowl. Sanding dust and workpiece waste will together with the process water continuously run through the gap (between the bottom disc and the ring) and return to the sump. Here, a submersible pump is mounted, which will subsequently automatically pump the process water on to a conical PE tank, where the sludge will fall to the bottom of the cone on the PE tank. The process water to be recycled will be taken out above the middle of the PE tank to ensure using the cleanest process water. Control of the machine’s functions takes place on a 5” colour touch screen. Here, rotation speed and process time are controlled as the most important parameters. All functions that are connected can also be operated manually. It is also possible to choose different languages. The process around the Turbo-Line is prepared with: Air-operated diaphragm pump or an electric-operated submersible pump for removal of consumed process water incl. sludge • Connection of water supply • Bottom d
