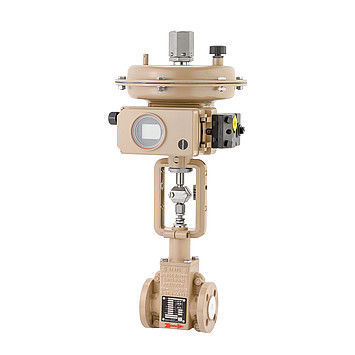

Globe valve BR 06apneumaticcontrolPTFE
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatic
- Function
- control
- Body
- PTFE
- Applications
- flange
- Other characteristics
- ANSI, DIN, low-pressure
- DN
Max.: 15 mm
(0.591 in)Min.: 6 mm
(0.236 in)- Temperature
Max.: 150 °C
(302 °F)Min.: -10 °C
(14 °F)
Description
Pneumatic control valve
VALVE STYLE
Globe valve
USAGE
Throttling service
Low-pressure service
VERSION
DIN
SUPPLY
Pneumatic
VALVE SIZE
PRESSURE RATING
PN 10
LINING
PTFE
Special features
Consisting of globe valve and actuator
Min. 5 mm PTFE lining
Valve trims made of special materials
Control of very low flow rates possible
PTFE bellows seal as standard
Leakage requirements according to DIN EN 12266, API 598 or ANSI FCI 70-2-2006
Accessories
Air filters
Options
Linings of special compounds, such as conductive PTFE
Valve plugs and seats made of special materials for erosive media
Backup PTFE packing
Flange hole patterns deviating from DIN standards
