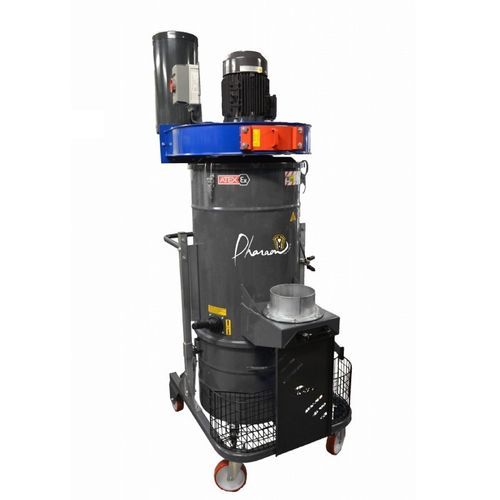

HEPA filter dust collector ZFREVAP560K1

manual cleaningself-cleaningexplosion-proof

Industrial ATEX dust collector for capturing very fine dust in ATEX Zone 22 environments. Product Details: - Powerful motor - Compliant with ATEX Zone 22, enhanced safety against explosive dust - Double-stage filtration (M + H14), high protection against fine particles - Quick emptying, 100L tank mounted on industrial wheels Learn more about the model: The Z22 – ZFREVAP560K1 is an industrial ATEX Zone 22 dust collector designed for the safe recovery of fine, light, and volatile dust present in explosion-risk environments. More powerful than the ZFREV420K07 model, it offers enhanced suction capacity and a 100-liter tank, ideal for larger volumes. Its three-phase centrifugal fan of 1.1 kW delivers an airflow of 1,500 m³/h and a vacuum of 200 mmH₂O, ensuring efficient extraction even in intensive use. The filtration system is based on a large-surface antistatic polyester pocket filter M (30,000 cm², Ø 560 mm) compliant with IEC 60335-2-69, complemented by a HEPA H14 absolute filter, guaranteeing 99.995% efficiency on ultrafine particles. This system ensures maximum safety for operators and the work environment. A manual cleaning system with handle maintains filtration performance and ensures the device's longevity. With its 100-liter tank mounted on casters, the ZFREVAP560K1 is suitable for applications requiring larger collection. Its epoxy-painted steel structure ensures robustness and durability, even in demanding industrial conditions. - Weight: 95 kg - Dimensions: 80 x 70 x 200h cm - Maximum vacuum (mmH₂O): 200 - Maximum airflow (m³/h): 1500 - Capacity (L): 100 - Noise level (dB): 72 - Filter surface (cm²): 30000 - Voltage (V): 400 - Power (W): 1100 - Primary filter: Pocket filter - HEPA H14 absolute filtration: Standard
