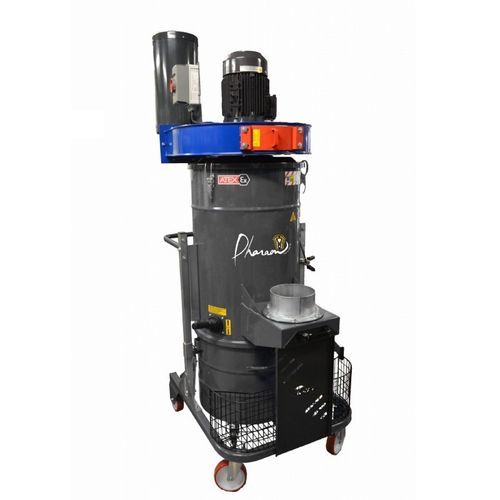

HEPA filter dust collector Z22 - ZFREVAP560K2

manual cleaningexplosion-proofATEX

The ZFREVAP560K2 Z22 is an ATEX Zone 22 certified industrial dust collector, specifically designed for the recovery of fine, volatile, and explosive dust in sensitive industrial environments. More powerful than the K1 model, it offers enhanced suction and double airflow, making it ideal for production lines requiring continuous high-performance extraction. Its three-phase centrifugal fan of 2.2 kW delivers a maximum vacuum of 200 mmH₂O and an impressive airflow of 3,000 m³/h, ensuring wider coverage and increased efficiency in dust capture. The filtration system relies on an antistatic polyester pocket filter M (30,000 cm² – Ø560 mm) compliant with IEC 60335-2-69, combined with an absolute HEPA H14 filter. This dual setup guarantees 99.995% efficiency on ultrafine particles, ensuring a safe working environment compliant with ATEX requirements. The 100-liter tank, mounted on industrial wheels, facilitates emptying operations and makes the device perfectly suited for high dust production environments. The manual cleaning system maintains filtration performance under all circumstances. The robust epoxy-painted steel structure ensures high resistance and increased longevity, even in intensive working conditions. - Powerful motor - ATEX Zone 22 compliant, enhanced safety against explosive dust - Dual-stage filtration (M + H14), high protection against fine particles - Quick emptying, 100L tank mounted on industrial wheels Technical Specifications: - Weight: 100 kg - Dimension: 78x85x214 cm - Max vacuum (mmH₂O): 200 - Max airflow (m³/h): 2500 - Capacity (L): 100 - Noise level (dB): 72 - Filter surface area (cm²): 50,000 - Voltage (Volts): 400 - Power (W): 2200 - Primary filter: Pocket filter - Absolute HEPA H14 filtration: Standard
