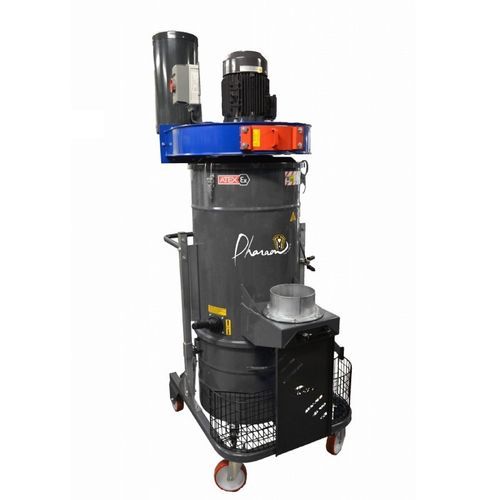

HEPA filter dust collector ZFREVAP560K4

manual cleaningcompactself-cleaning

The ZFREVAP560K4 Z22 is one of the most powerful models in the range, designed to meet the strictest requirements for ATEX Zone 22 safety and continuous suction performance. Equipped with a 4 kW motor and an Ex centrifugal fan, it delivers an impressive air flow of 3500 m³/h while maintaining a maximum vacuum of 370 mmH₂O, ensuring remarkable efficiency even against the most volatile dust. Its high-end dual filtration combines an antistatic polyester filter class M and a HEPA H14 absolute filter certified 99.995% efficiency. This technology ensures optimal capture of fine and harmful dust, protecting both the work environment and operator health. The manual filter cleaning system with handle extends filter life, prevents performance loss, and reduces maintenance costs. The 100-liter tank, mounted on robust wheels, offers quick and effortless emptying. Its epoxy-painted steel design makes it a durable and reliable solution even in the most demanding environments. Mobility is a key asset, allowing the device to be easily moved as production needs change. This model excels in sectors such as wood, aluminum, PVC, or electronics, where fine dust control is essential. It can be directly connected to machines or equipped with an optional extraction arm, offering great versatility of use. The ZFREVAP560K4 Z22 embodies the high-flow reference in ATEX dust collection, combining power, safety, and ergonomics. It is the ideal equipment for industries seeking a high-performance, robust solution that complies with the strictest standards. - Powerful motor - ATEX Zone 22 compliant, enhanced safety against explosive dust - Dual-stage filtration (M + H14), high protection against fine particles - Quick emptying, 100L tank mounted on industrial wheels Technical specifications: - Weight: 100 kg - Dimension: 78x85x214 cm - Maximum vacuum (mmH²O): 370 - Maximum flow rate (m³/h): 3500 - Capacity (L): 100 - Noise level (dB): 74 - Filter surface area (cm²): 50000 - Voltage (Volts): 400 - Power (W): 4000 - Primary filter: Pocket filter - Absolute HEPA H14 filtration: Standard
