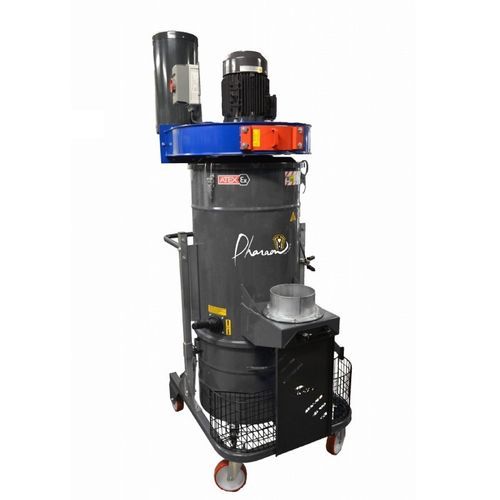

Flat bag dust collector Z22 - ZFREV420K07

manual cleaningstand-aloneATEX

Industrial ATEX dust collector for capturing very fine dusts. Z22 – ZFREV420K07 is an ATEX Zone 22 industrial dust collector, specially designed for the recovery of fine, light, and airborne dust particles. Compact and mobile, it ensures continuous and safe suction in environments at risk of dust explosion. Its three-phase centrifugal fan delivers a power of 0.75 kW, allowing a maximum air flow of 1,000 m³/h and a vacuum of 180 mmH₂O, ensuring efficient extraction of airborne particles. The filtration is based on a double safety barrier: - Antistatic polyester pocket filter M (20,000 cm², Ø 420 mm), compliant with IEC 60335-2-69, - HEPA H14 absolute filter, with an efficiency of 99.995% according to the MPPS method. A manual cleaning system with a handle maintains filter performance over time, while preventing the dispersion of harmful dust into the environment. The 45-liter tank, mounted on wheels, facilitates emptying and makes the device particularly maneuverable. The robust epoxy-painted steel structure ensures long life and intensive use. The ZFREV420K07 can be used alone or combined with an optional extraction arm, or directly connected to production machines, as needed. - ATEX Zone 22 compliant, enhanced safety against explosive dusts - Double filtration M + H14, maximum protection for the environment and operators - Quick emptying, 45L tank mounted on industrial wheels Technical Specifications - Weight: 60 kg - Dimensions: 68 x 63 x 180h cm - Maximum vacuum (mmH₂O): 180 - Maximum airflow (m³/h): 1000 - Capacity (L): 45 - Noise level (dB): 70 - Filter surface area (cm²): 20000 - Voltage (Volts): 400 - Power (W): 750 - Primary filter: Pocket filter - HEPA H14 absolute filtration: Standard
